Heavy Duty Electric Winch with Bend Sheaves & Mounting Frame
Heavy Duty Electric Winch with Bend Sheaves & Mounting Frame
SKU:RIG-83d680
Heavy-duty winch with 25000 lbs. capacity, essential controls, and versatile mounting options.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch with Bend Sheaves & Mounting Frame
$1,599.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch with Bend Sheaves & Mounting Frame
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Electric Winch with Bend Sheaves & Mounting Frame is built to handle the toughest tasks with a lifting and pulling capacity of 25000 lbs. It features a durable 1-inch wire rope diameter and a compact design for versatile mounting options. This winch is equipped with essential controls including a lever drum mounted at the winch and a magnetic remote pushbutton. Ideal for applications requiring an electrical brake system, this winch meets stringent industry standards for reliability and performance.

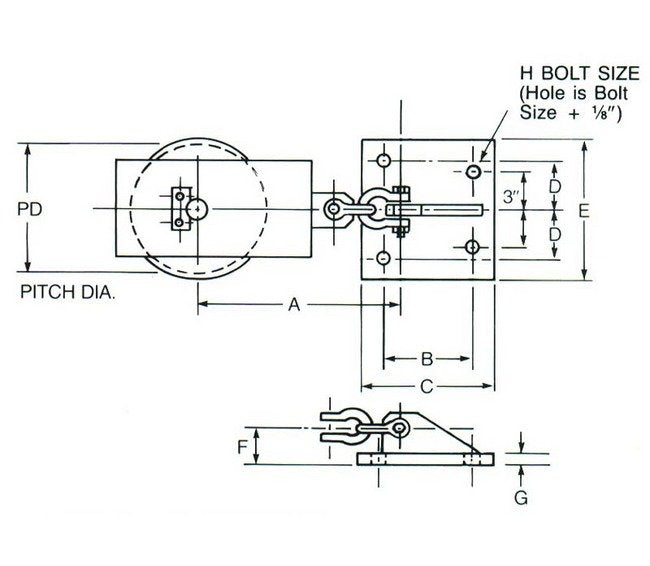

Product Specifications
Specifications Capacity
25000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Dimension A
36 inches
Specifications Dimension B
15 inches
Specifications Dimension C
19 inches
Specifications Dimension D
7 inches
Specifications Dimension E
19 inches
Specifications Dimension F
5 inches
Specifications Dimension G
1 1/2 inches
Specifications Dimension H
1 3/4 inches
Specifications Model
BS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
20 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
1 inches
