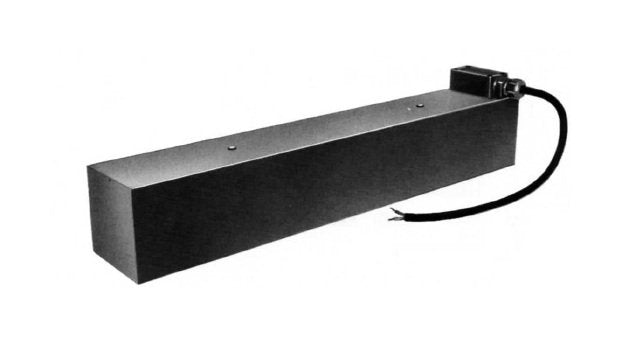

Enhance your material handling operations with our Heavy-Duty Electromagnet for Material Handling. Designed with a 3-pole configuration, this electromagnet delivers superior holding power across the entire length, making it ideal for lifting medium gauge sheet metal and plate efficiently. With a capacity of 5700 lb and various voltage options, including a standard 110 VDC, this electromagnet is versatile and reliable. Its heavy-duty construction, replaceable Pole Shoes, and stainless steel coil covers ensure durability and longevity. Whether used individually or in multiples for larger applications, this electromagnet is a must-have for stacking or de-stacking operations.
Product Specifications
Additional Information 0
"MHE" Electromagnets are of a heavy-duty construction and are provided with mounting holes, wiring box, replaceable "Pole Shoes", & stainless steel coil covers. Standard voltage is 110 VDC (220 VDC optional). Can be used with "AU" Series (automation compatible), or "MA" - "MR" Series (manual operation) Rectifier-Controllers.Information required to Select Proper ElectromagnetsRange of length, width and thickness of material to be handledType of materialSurface condition of materialMaterial temperatureLift multiple plates or one at a time off stackManual or automated applicationComplete description of operating sequence including drawings, sketches, photographs or video tapesOperating environment
Manufacturing Notes 0
Capacity - Capacity ratings shown include 2:1 safety factor. Ratings based on 3/4 in. flat, clean, low carbon steel. Lighter gauge materials must be de-rated.
Specifications Capacity
5700 lb

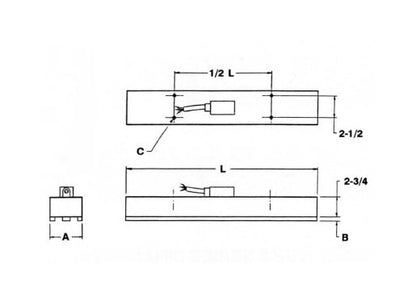

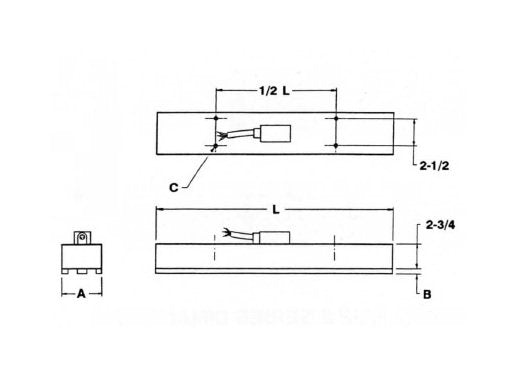

Specifications Dimension A
4 1/2 in
Specifications Dimension B
.750 in
Specifications Dimension C
1/2-13
Specifications Dimension L
42 in
Specifications Optional Dc Voltage Ratings
220 V
Specifications Power
261 W
Specifications Standard Dc Voltage
110 V
Specifications Weight
105 lb
