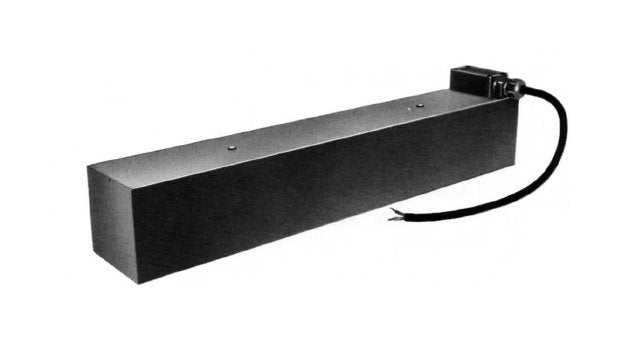

The Heavy-Duty Electromagnetic Material Handler is designed for efficient medium gauge sheet metal and plate handling. Equipped with a 3-pole design, this electromagnet offers superior holding power across its length, ideal for lifting individual sheets or layers of parts. With a capacity of 4650 lb and a power rating of 194 W, this electromagnet, when paired with a variable power rectifier-controller, ensures precise and reliable lifting operations. Built with heavy-duty construction, mounting holes, and replaceable pole shoes, this electromagnet guarantees durability and versatility for various handling applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
"MHE" Electromagnets are of a heavy-duty construction and are provided with mounting holes, wiring box, replaceable "Pole Shoes", & stainless steel coil covers. Standard voltage is 110 VDC (220 VDC optional). Can be used with "AU" Series (automation compatible), or "MA" - "MR" Series (manual operation) Rectifier-Controllers.Information required to Select Proper ElectromagnetsRange of length, width and thickness of material to be handledType of materialSurface condition of materialMaterial temperatureLift multiple plates or one at a time off stackManual or automated applicationComplete description of operating sequence including drawings, sketches, photographs or video tapesOperating environment
Manufacturing Notes 0
Capacity - Capacity ratings shown include 2:1 safety factor. Ratings based on 3/4 in. flat, clean, low carbon steel. Lighter gauge materials must be de-rated.
Specifications Capacity
4650 lb

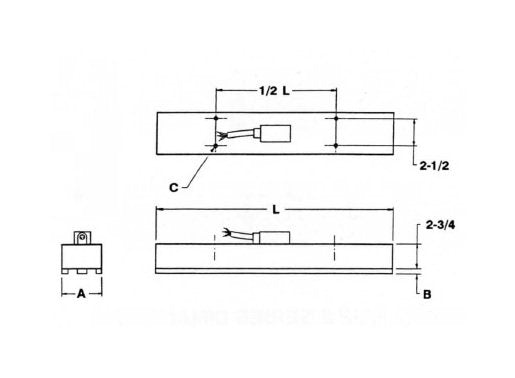

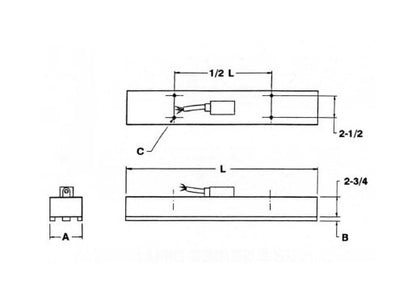

Specifications Dimension A
4 1/4 in
Specifications Dimension B
.500 in
Specifications Dimension C
3/8-16
Specifications Dimension L
32 in
Specifications Optional Dc Voltage Ratings
220 V
Specifications Power
194 W
Specifications Standard Dc Voltage
110 V
Specifications Weight
74 lb
