Heavy-Duty Electromagnetic Material Handler
Heavy-Duty Electromagnetic Material Handler
SKU:MHE-d9c19b
Heavy-Duty Electromagnetic Material Handler with 7300 lb capacity, 110 V standard DC voltage, and 283 W power for efficient sheet metal and plate handling.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Heavy-Duty Electromagnetic Material Handler
$1,299.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Electromagnetic Material Handler
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

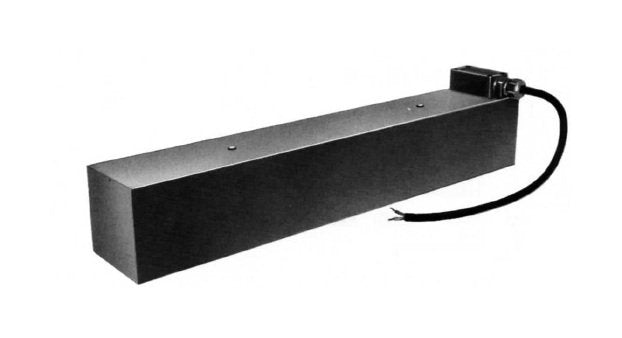

The Heavy-Duty Electromagnetic Material Handler is a robust solution for lifting medium gauge sheet metal and plate materials with ease and precision. Equipped with a 3-pole design, this electromagnet offers superior holding power across its length, making it ideal for safely lifting layers of rods or bars during stacking or de-stacking operations. With a capacity of 7300 lb, powered by 110 V standard DC voltage (220 V optional), and a power rating of 283 W, this electromagnet is constructed for heavy-duty industrial use. It comes with mounting holes, wiring box, replaceable Pole Shoes, and stainless steel coil covers for added durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
"MHE" Electromagnets are of a heavy-duty construction and are provided with mounting holes, wiring box, replaceable "Pole Shoes", & stainless steel coil covers. Standard voltage is 110 VDC (220 VDC optional). Can be used with "AU" Series (automation compatible), or "MA" - "MR" Series (manual operation) Rectifier-Controllers.Information required to Select Proper ElectromagnetsRange of length, width and thickness of material to be handledType of materialSurface condition of materialMaterial temperatureLift multiple plates or one at a time off stackManual or automated applicationComplete description of operating sequence including drawings, sketches, photographs or video tapesOperating environment
Manufacturing Notes 0
Capacity - Capacity ratings shown include 2:1 safety factor. Ratings based on 3/4 in. flat, clean, low carbon steel. Lighter gauge materials must be de-rated.
Specifications Capacity
7300 lb

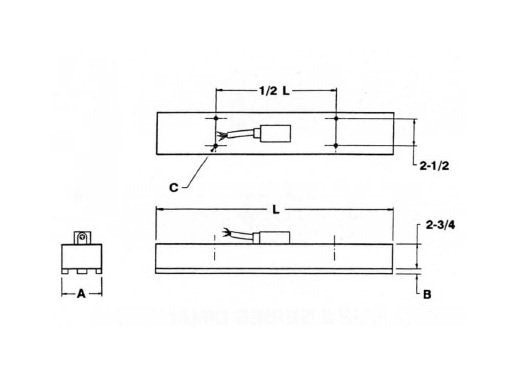

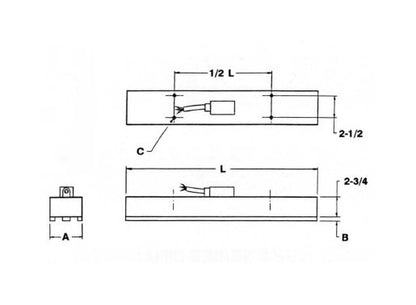

Specifications Dimension A
4 1/2 in
Specifications Dimension B
.750 in
Specifications Dimension C
1/2-13
Specifications Dimension L
48 in
Specifications Optional Dc Voltage Ratings
220 V
Specifications Power
283 W
Specifications Standard Dc Voltage
110 V
Specifications Weight
120 lb
