Heavy-Duty Electromagnetic Material Handling System
Heavy-Duty Electromagnetic Material Handling System
SKU:MHE-090d59
Efficiently handle sheet metal or plate materials with precision using our Heavy-Duty Electromagnetic Material Handling System.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Heavy-Duty Electromagnetic Material Handling System
$2,499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Electromagnetic Material Handling System
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

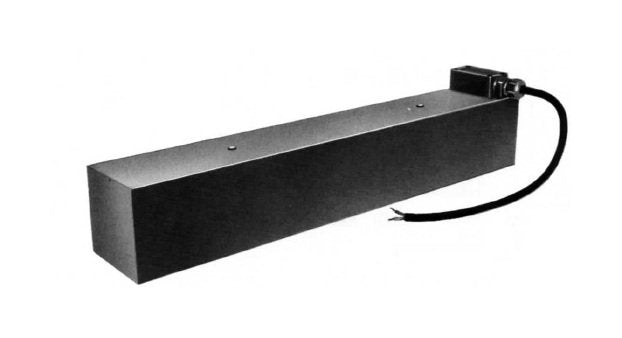

The Heavy-Duty Electromagnetic Material Handling System is a versatile solution designed for efficient handling of medium gauge sheet metal and plate materials. Featuring a robust 3 pole design, this electromagnet offers exceptional holding power across its length, making it ideal for lifting individual sheets or layers of parts with ease. With a lifting capacity of up to 3700 lb and a power rating of 142 W, this system is equipped to handle various material sizes and weights. Additionally, it comes with replaceable Pole Shoes, stainless steel coil covers, and optional DC voltage ratings. Whether you need to handle large plates with multiple electromagnets or smaller materials individually, this system provides reliability and performance in both manual and automated applications.
Product Specifications
Additional Information 0
"MHE" Electromagnets are of a heavy-duty construction and are provided with mounting holes, wiring box, replaceable "Pole Shoes", & stainless steel coil covers. Standard voltage is 110 VDC (220 VDC optional). Can be used with "AU" Series (automation compatible), or "MA" - "MR" Series (manual operation) Rectifier-Controllers.Information required to Select Proper ElectromagnetsRange of length, width and thickness of material to be handledType of materialSurface condition of materialMaterial temperatureLift multiple plates or one at a time off stackManual or automated applicationComplete description of operating sequence including drawings, sketches, photographs or video tapesOperating environment
Manufacturing Notes 0
Capacity - Capacity ratings shown include 2:1 safety factor. Ratings based on 3/4 in. flat, clean, low carbon steel. Lighter gauge materials must be de-rated.
Specifications Capacity
3700 lb

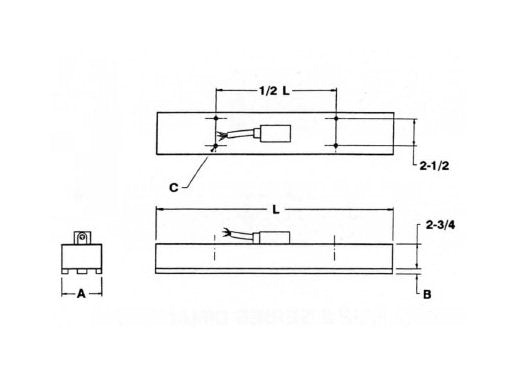

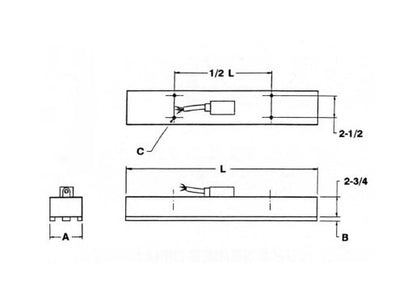

Specifications Dimension A
4 1/4 in
Specifications Dimension B
.500 in
Specifications Dimension C
3/8-16
Specifications Dimension L
24 in
Specifications Optional Dc Voltage Ratings
220 V
Specifications Power
142 W
Specifications Standard Dc Voltage
110 V
Specifications Weight
56 lb
