The Heavy Duty End Truck Kits are designed for reliable overhead crane operations, offering a capacity range of 2 to 10 tons. Featuring precision oil-bath lubricated gearing with mechanical braking, these kits ensure smooth deceleration and stopping, meeting OSHA requirements. Fabricated from heavy steel channel shapes, the sturdy frames with Tru-Tred Wheels and long-life wheel bearings provide durability and quiet operation. With optional accessories like rubber bumpers and multiple control options, these kits are ideal for heavy-duty industrial applications.
Product Specifications
Kit Contents 0
Large Diameter Drive Pinions
Specifications Capacity
10 Tons
Specifications Crane Wheel Diameter
10 inches

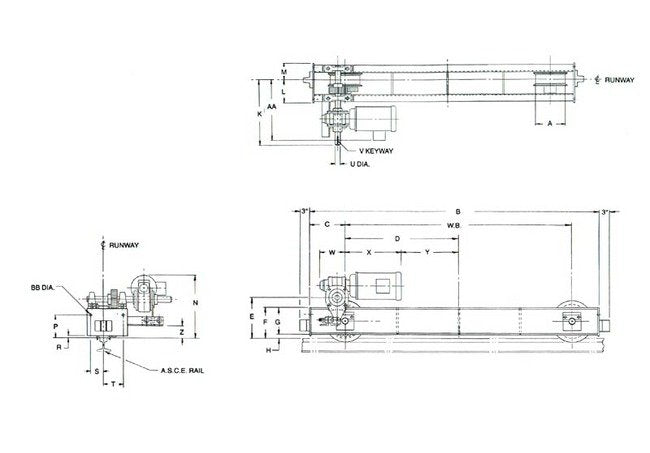

Specifications Dimension A
10 inches
Specifications Dimension Aa
15 3/4 inches
Specifications Dimension B
7'-6"
Specifications Dimension Bb
11/16 inches
Specifications Dimension C
11 inches
Specifications Dimension D
3'-0"
Specifications Dimension E
11 1/16 inches
Specifications Dimension F
8 7/8 inches
Specifications Dimension G
8 inches
Specifications Dimension H
7/8 inches
Specifications Dimension L
6 inches
Specifications Dimension M
4 1/4 inches
Specifications Dimension N
17 11/16 inches
Specifications Dimension P
6 7/8 inches
Specifications Dimension R
1/2 inches
Specifications Dimension S
3 1/8 inches
Specifications Dimension T
5 1/8 inches
Specifications Dimension U
1 1/4 inches
Specifications Dimension V
1/4 x 1/8 inches
Specifications Dimension W
7 1/8 inches
Specifications Dimension X
13 3/8 inches
Specifications Dimension Y
22 5/8 inches
Specifications Dimension Z
4 1/2 inches
Specifications Maximum Asce Runway Rail
40#
Specifications Max Wheel Load Per Wheel
14000 lbs.
Specifications Net Weight Per Pair
1150 lbs.
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Specifications Wheel Base
6'-0"
Standard Features 0
Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping.Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing..End Truck Frames : Fabricated from heavy steel channel shapes interconnected with diaphragms and end plates to form a sturdy jig welded box. Heavy steel axle reinforcement bosses are welded to main frame then line bored to insure accurate wheel alignment for Tru-Rolling truck operation. Neoprene rubber bumpers are available as accessory equipment for cushioned contact with runway end stops..Tru-Tred Wheels : Precision machined from alloy steel double flanged to meet the most demanding service requirements..Wheel Bearings : Heavy duty long life rated roller bearings rotating on high carbon alloy steel hardened and ground axles with pressure grease lubrication.
