Upgrade your overhead crane with our Heavy Duty End Truck Kits featuring alloy carbon steel precision machine-cut wheel gearing for durability and quiet operation. These kits come with large pocket wheels, smooth side roller guidance, and steel truck frames for precise wheel alignment. The split truck design allows for easy crane erection on various runway systems. Choose between Hand Geared UCG or Push Type UCP options. With a 5-ton capacity, ASCE Rail Size 40, and compliance with industry standards, these kits ensure reliable performance and safety.
Product Specifications
Specifications Asce Rail Size
40
Specifications Capacity
5 Tons
Specifications Crane Wheel Diameter
8 inches
Specifications Hand Wheel Diameter
11 inches
Specifications Max Wheel Load
7500 lbs.
Specifications Model
Model TCP and TCG Crane Kits
Specifications Net Weight Per Pair
640 lbs.
Specifications Wheel Base
5'-0"
Standard Features 0

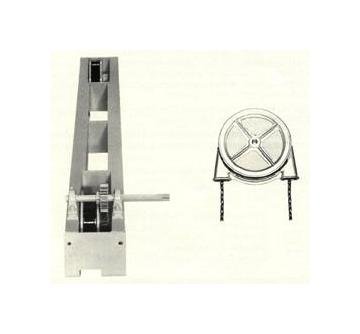

Wheel Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing. Hand Wheel Ddive : Large diameter pocket wheel for ease of operation complete with chain guard and sufficient alloy hand chain for a standard 8'-0" operating hand chain drop. Side Roller Guidance : Heavy duty cam follower bearing's provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Side roller setting requires 1/4" plus or minus runway rail alignment to insure smooth crane operation. Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway systems. Hand Geared UCG : All parts shown are furnished. Push Type UCP : All plain wheels - no gearing. Complete dimensional data furnished upon request and with each order.
