Heavy-Duty Engineering Thermoplastic Battery Master Disconnect Switch
Heavy-Duty Engineering Thermoplastic Battery Master Disconnect Switch
SKU:CVP-9bc138
High amperage IP67 Battery Disconnect Switch for heavy-duty vehicles. Waterproof, dustproof, and durable housing.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Heavy-Duty Engineering Thermoplastic Battery Master Disconnect Switch
$69.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Engineering Thermoplastic Battery Master Disconnect Switch
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

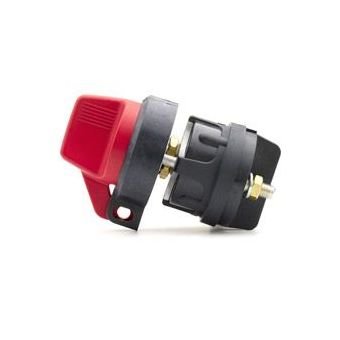

The Engineering Thermoplastic Case CVP Battery Master Disconnect Switch is a high amperage capacity IP67 sealed switch designed for reliable emergency power cut-off in vehicles like heavy trucks, emergency vehicles, and marine applications. With a maximum total continuous current of 400A and waterproof/dustproof IP67 rating, this switch ensures durability and safety in harsh environments. The composite engineered polymer housing prevents rusting and corrosion, meeting SAE 1455 standards for salt resistance.
Product Specifications
Accessories Accessories

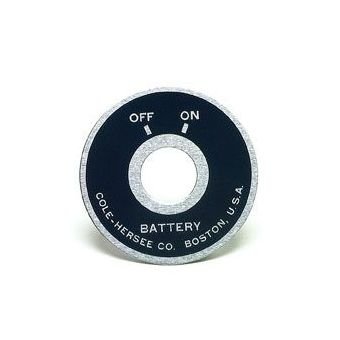

Item # - 82065Item Name - Faceplate for Master Disconnect SwitchesDescription - 82065 Faceplate without indexing hole for metal case battery disconnect switches without indexing pin. Polished aluminum with enamel finish 2-1/2 (63.5 mm) diameter. 82065-02 faceplate with indexing pin.
Additional Information Additional Information
Waterproof and dustproof to IP67. Which means the switch can be mounted in exposed locations. Composite engineered polymer housing will not rust or corrode. Tested per SAE 1455 for salt calcium chloride & magnesium chloride. Large red knob is easy to oper
Specifications Applications
Agricultural | Emergency Vehicles | Heavy Truck | Marine | Material Handling | Mining | Off-road Construction | Refuse Collection | Vehicle Electrical Systems
Specifications Case Material
Engineering Thermoplastic
Specifications Contact Material
Copper
Specifications Housing
Composite Engineered Polymer
Specifications Ingress Protection Rating
IP68
Specifications Maximum Total Continuous Current
400 A
Specifications Maximum Voltage Rating
36 V
Specifications Mounting Stem Material
Zinc Die Cast
Specifications Number Of Positions
2
Specifications Stud Terminal Material
Tin Plated Copper
Specifications Switching Current At 12 Volts V Direct Current Dc
300 A
Specifications Switching Current At 36 Volts V Direct Current Dc
200 A
