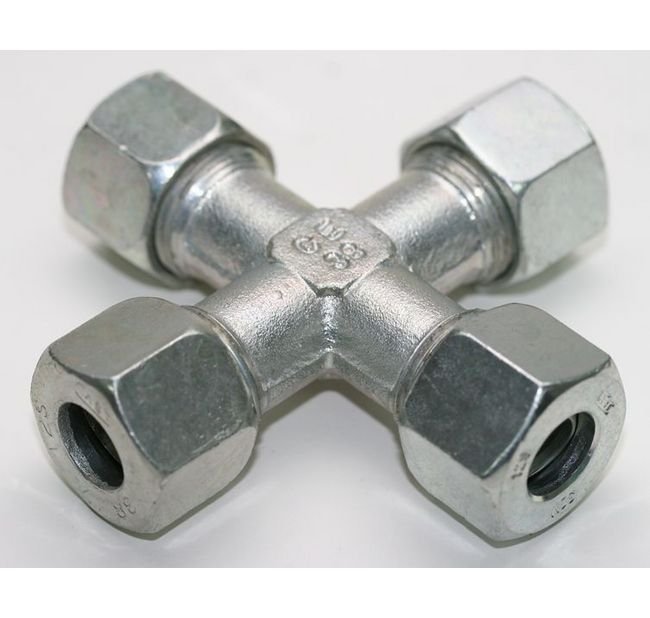

Heavy Duty Equal Cross - Carbon Steel DIN 2353 Compression Fitting

Name: Heavy Duty Equal Cross - Carbon Steel DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-745291
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-745291

Heavy Duty Carbon Steel Equal Cross for High-Pressure Applications. DIN 2353 Compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

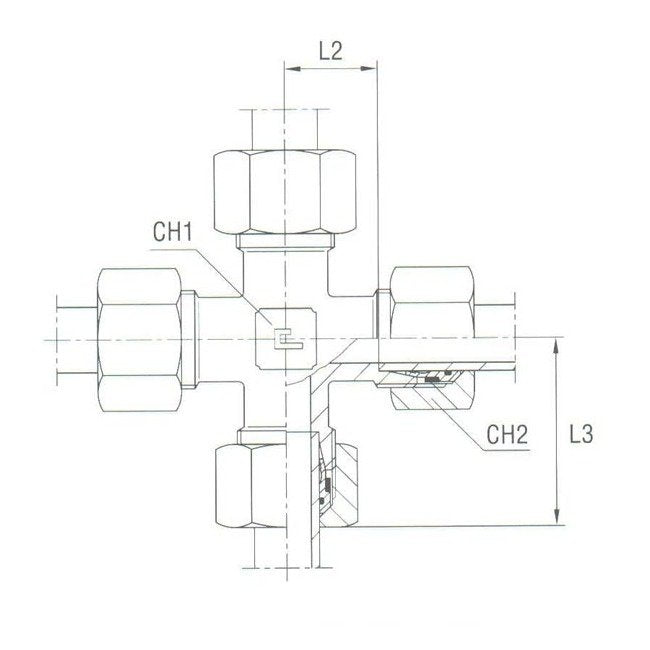

The Heavy Duty Equal Cross - Equipped B4 Ring is a reliable component designed for industrial applications. Crafted from Carbon Steel, this fitting ensures durability and strength. With a tube diameter of 6.0 mm and a nominal operating pressure of 630 bar, it meets the rigorous standards of DIN 2353. Featuring precise dimensions (L2: 16.0 mm, L3: 31 mm, CH1: 12 mm, CH2: 17.0 mm), this fitting offers secure connections and optimal performance.

Product Specifications

Specifications Ch1

12 mm

Specifications Ch2

17.0 mm

Specifications L2

16.0 mm

Specifications L3

31 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm
