Heavy Duty Equal Elbow with B4 Ring - Carbon Steel, DIN 2353 Compliant
Heavy Duty Equal Elbow with B4 Ring - Carbon Steel, DIN 2353 Compliant
SKU:FIT-dd729f
Heavy Duty Equal Elbow with B4 Ring - Carbon Steel, DIN 2353 Compliant, for high-pressure applications
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Equal Elbow with B4 Ring - Carbon Steel, DIN 2353 Compliant
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Equal Elbow with B4 Ring - Carbon Steel, DIN 2353 Compliant
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Equal Elbow equipped with B4 Ring is a robust solution for high-pressure applications, featuring a sturdy Carbon Steel construction. With a tube diameter of 30.0 mm and a nominal operating pressure of 400 bar, this fitting ensures reliable performance under extreme conditions. Meeting DIN 2353 standards, it offers exceptional durability and precise fittings, making it ideal for industrial and institutional use.

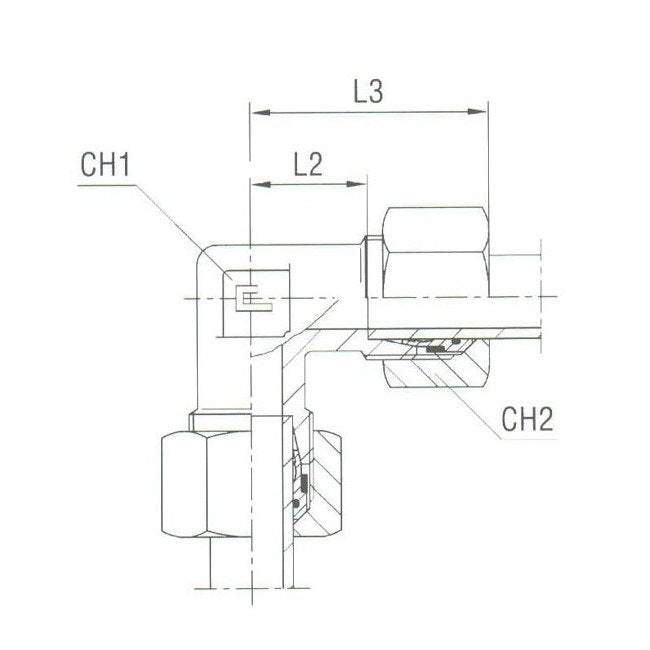

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
50 mm
Specifications L2
35.5 mm
Specifications L3
62 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
