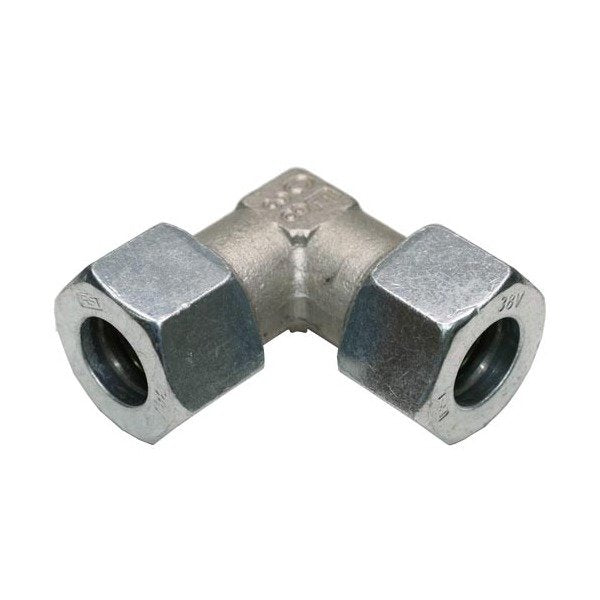

Heavy Duty Equal Elbow with Equipped B3 Ring - DIN 2353 Compression Fittings
Heavy Duty Equal Elbow with Equipped B3 Ring - DIN 2353 Compression Fittings
SKU:FIT-df3189
Premium stainless steel Equal Elbow for heavy-duty industrial applications. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Equal Elbow with Equipped B3 Ring - DIN 2353 Compression Fittings
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Equal Elbow with Equipped B3 Ring - DIN 2353 Compression Fittings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Equal Elbow with Equipped B3 Ring is a top-of-the-line fitting designed for industrial applications requiring robust performance. Crafted from high-quality stainless steel, this fitting ensures durability and long-lasting reliability. With a Tube Diameter of 16.0 mm and a Nominal Operating Pressure of 400 bar, it excels under high-pressure conditions. Meeting DIN 2353 standards, this fitting guarantees precision and compliance for your installations.

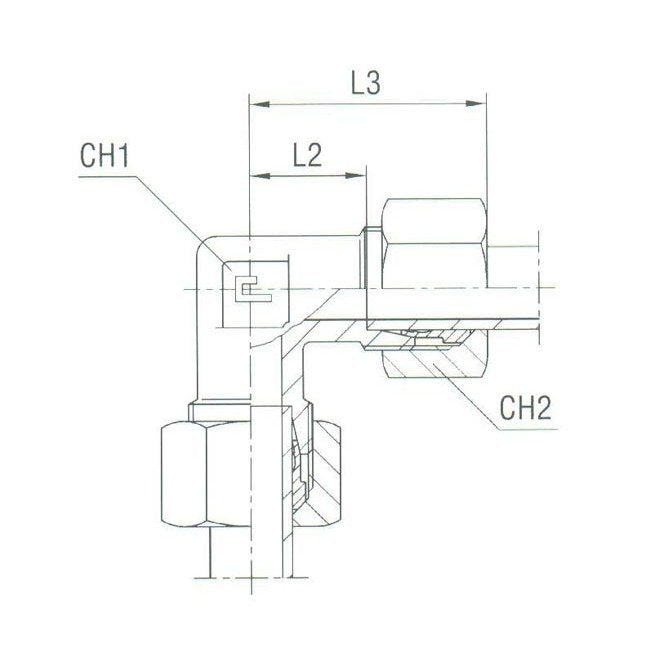

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
30 mm
Specifications L2
24.5 mm
Specifications L3
43 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
