Heavy Duty Equal Non Return Valve Body-Only for Hydraulic Systems
Heavy Duty Equal Non Return Valve Body-Only for Hydraulic Systems
SKU:FIT-8845c0
Premium Carbon Steel Non Return Valve Body for Hydraulic Systems - Heavy Duty, 400 bar
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Equal Non Return Valve Body-Only for Hydraulic Systems
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Equal Non Return Valve Body-Only for Hydraulic Systems
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

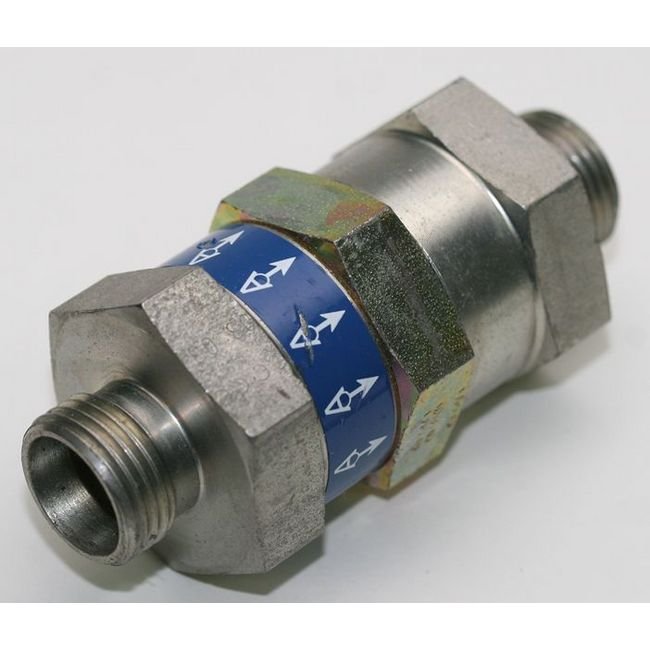

The Heavy Duty Equal Non Return Valve Body is designed for high-pressure hydraulic systems with a nominal operating pressure of 400 bar. Crafted from durable carbon steel, this valve ensures reliable performance under demanding conditions. With a tube diameter of 20.0 mm and precise measurements of L1: 98.0 mm, L2: 77 mm, and CH1: 50 mm, this valve guarantees optimal flow control and prevents backflow efficiently. Ideal for hydraulic check valve applications that require robust and high-quality components.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
16 mm
Specifications L1
98.0 mm
Specifications L2
77 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
20.0 mm
