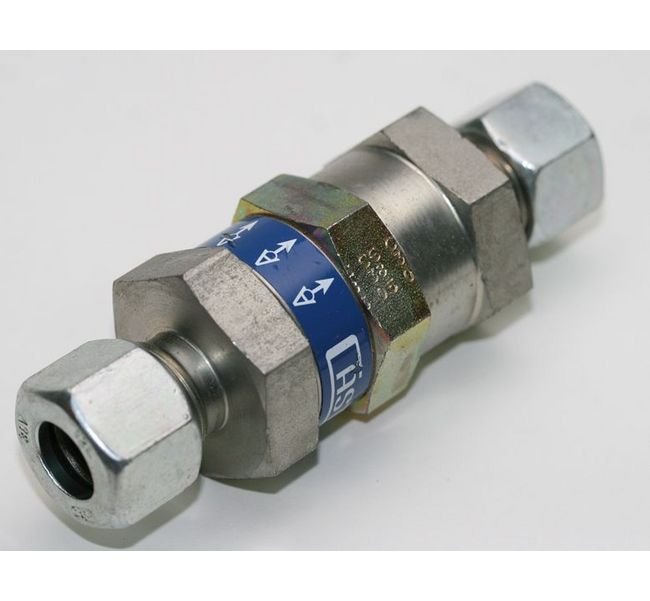

Heavy Duty Equal Non Return Valve with B4 Ring
Heavy Duty Equal Non Return Valve with B4 Ring
SKU:FIT-9701d8
High-pressure Equal Non Return Valve for hydraulic systems. Durable carbon steel construction. Meets Federal/DoD standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Equal Non Return Valve with B4 Ring
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Equal Non Return Valve with B4 Ring
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Equal Non Return Valve with B4 Ring is designed to withstand pressure up to 400 bar, making it ideal for hydraulic systems in demanding industrial settings. Crafted from durable carbon steel, this valve ensures reliable performance and longevity. With precise measurements and a diameter pass of 8mm, it guarantees efficient flow control. Compliant with Federal/DoD procurement standards, this valve is a dependable choice for government and institutional buyers seeking quality and durability.

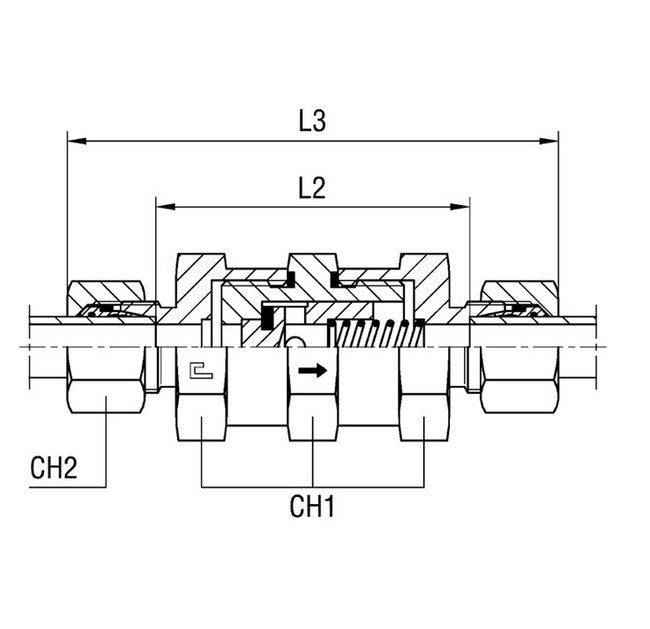

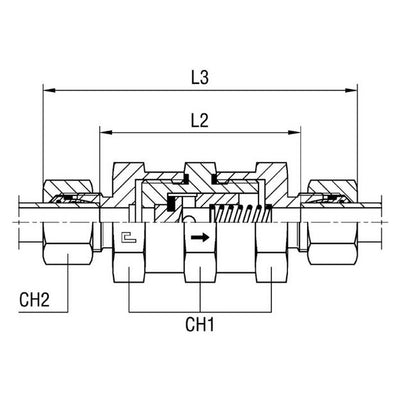

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
24 mm
Specifications Diameter Pass
8 mm
Specifications L2
63 mm
Specifications L3
95 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
12.0 mm
