Heavy Duty Equal Non Return Valve with B4 Ring, 400 bar
Heavy Duty Equal Non Return Valve with B4 Ring, 400 bar
SKU:FIT-aa6aee
Reliable Heavy Duty Non Return Valve with B4 Ring, 400 bar, Carbon Steel. Ideal for hydraulic systems.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Heavy Duty Equal Non Return Valve with B4 Ring, 400 bar
$69.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Equal Non Return Valve with B4 Ring, 400 bar
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Equal Non Return Valve is designed to provide exceptional performance and reliability in hydraulic systems. With a Nominal Operating Pressure of 400 bar, this valve ensures efficient flow control. Crafted from Carbon Steel, it guarantees durability and long-lasting use. The equipped B4 Ring enhances sealing for optimal functioning. Ideal for applications requiring precise pressure regulation and reverse flow prevention, this valve is a dependable choice for industrial and institutional settings.

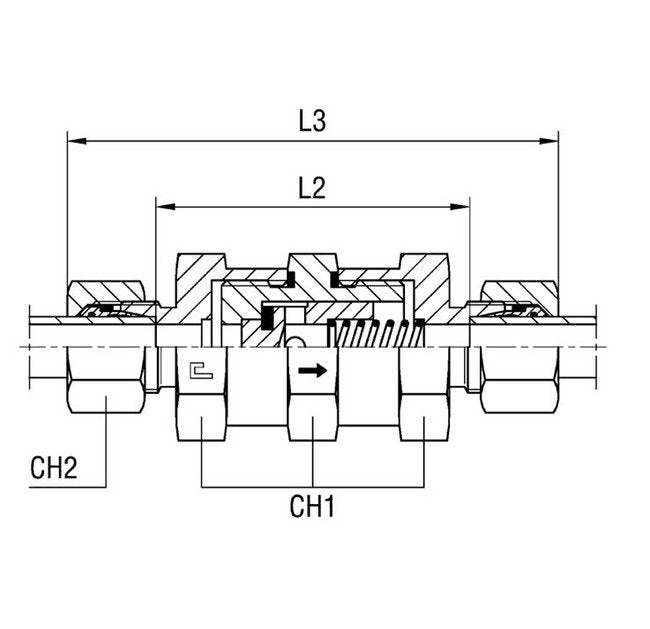

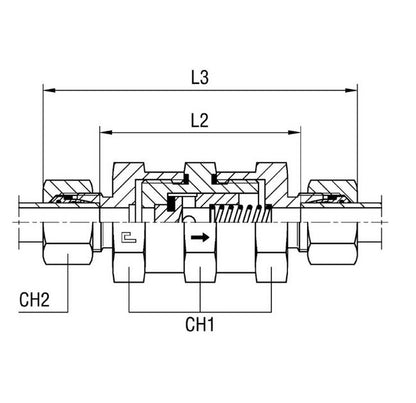

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
7 mm
Specifications L2
63 mm
Specifications L3
95 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
10.0 mm
