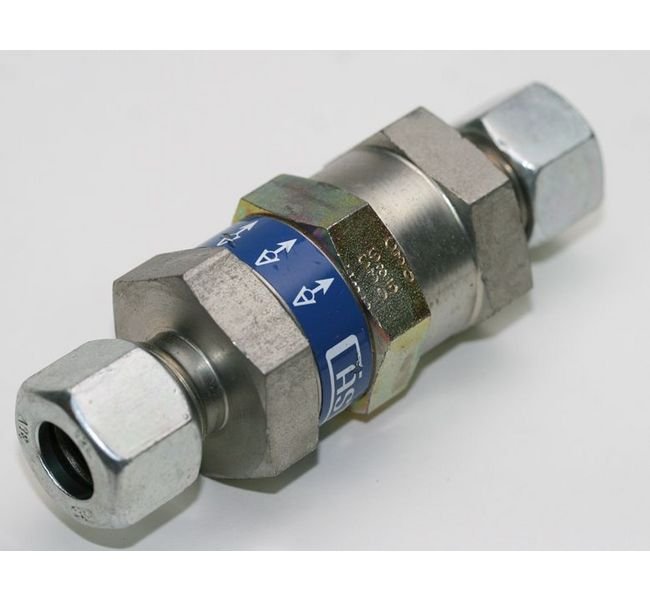

Heavy Duty Equal Non Return Valve with B4 Ring - DIN Compliant

Heavy Duty Equal Non Return Valve with B4 Ring - DIN Compliant

VAL-aa6aee

Heavy Duty Non Return Valve for high-pressure hydraulic systems, DIN compliant, ensures precision flow control.

$69.99
$69.99
Sale

Initiate Order

Heavy Duty Equal Non Return Valve with B4 Ring - DIN Compliant

Heavy Duty Equal Non Return Valve with B4 Ring - DIN Compliant

$69.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Equal Non Return Valve with B4 Ring - DIN Compliant

Heavy Duty Equal Non Return Valve with B4 Ring - DIN Compliant

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

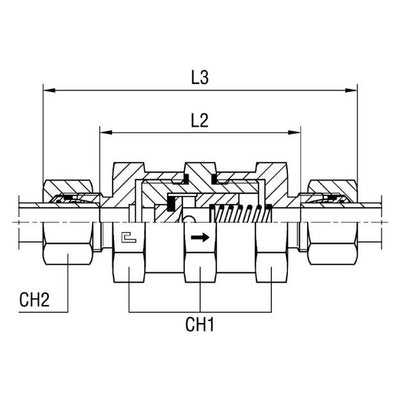

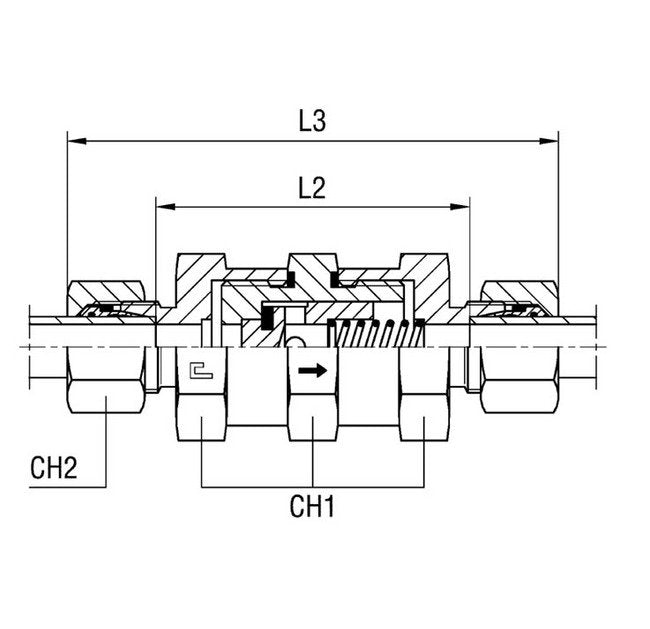

The Heavy Duty Equal Non Return Valve with B4 Ring is designed for high-pressure hydraulic systems, with a Nominal Operating Pressure of 400 bar. Crafted from durable Carbon Steel, this valve ensures reliable performance and durability. Its precise design with dimensions L2: 63 mm, L3: 95 mm, CH1: 32 mm, and CH2: 22 mm, along with a 7 mm Diameter Pass., provides efficient flow control and prevents backflow. Ideal for DIN Check Valve applications, this valve guarantees precision and efficiency in hydraulic systems.

Product Specifications

Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
7 mm
Specifications L2
63 mm
Specifications L3
95 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
10.0 mm
Category 6
Equal Non Return Valve
