Heavy Duty Equal Non Return Valve with B4 Ring, Stainless Steel, 400 bar
Heavy Duty Equal Non Return Valve with B4 Ring, Stainless Steel, 400 bar
SKU:VAL-717f23
Highly durable stainless steel Non Return Valve for hydraulic systems with 400 bar pressure capacity.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Equal Non Return Valve with B4 Ring, Stainless Steel, 400 bar
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Equal Non Return Valve with B4 Ring, Stainless Steel, 400 bar
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Equal Non Return Valve with B4 Ring is a reliable solution for hydraulic systems requiring a maximum operating pressure of 400 bar. Made from high-quality stainless steel, this valve ensures durability and corrosion resistance. With precise specifications including a tube diameter of 8.0mm and L2/L3 dimensions of 58mm/87mm, this valve offers superior performance in demanding industrial environments. Compliant with industry standards, this valve is designed to meet the stringent requirements of institutional and government procurement.
Product Specifications

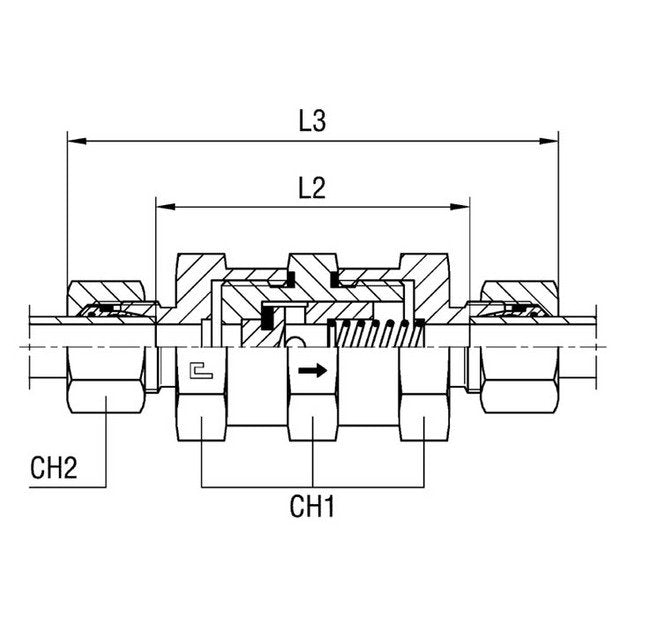

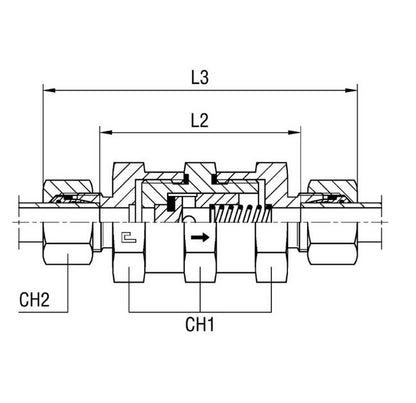

Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Diameter Pass
4 mm
Specifications L2
58 mm
Specifications L3
87 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
8.0 mm
Category 6
Equal Non Return Valve
