Heavy-Duty Equal Non Return Valve with B4 Ring, Stainless Steel, 6.0mm
Heavy-Duty Equal Non Return Valve with B4 Ring, Stainless Steel, 6.0mm
SKU:FIT-68033d
Durable stainless steel non-return valve for hydraulic systems, heavy-duty, 400 bar pressure
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy-Duty Equal Non Return Valve with B4 Ring, Stainless Steel, 6.0mm
$49.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Equal Non Return Valve with B4 Ring, Stainless Steel, 6.0mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve - Equipped B4 Ring is a heavy-duty hydraulic check valve designed to withstand pressures up to 400 bar. Constructed from stainless steel, it ensures durability and longevity in demanding industrial environments. With precise dimensions including a 6.0mm tube diameter and compact design, this valve offers reliable performance and easy installation. Compliant with federal procurement standards and industry certifications, it meets the stringent requirements of institutional buyers seeking quality and reliability.

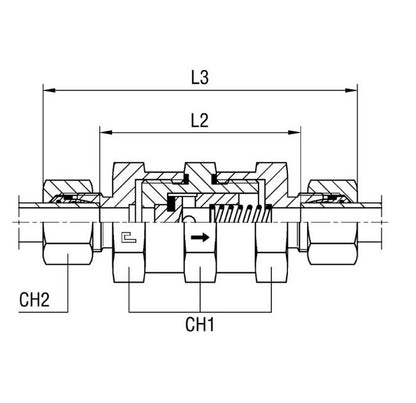

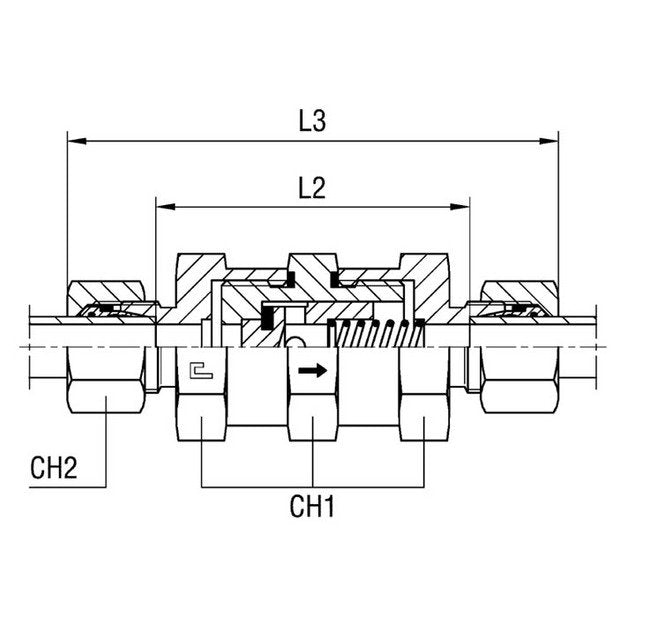

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
17.0 mm
Specifications Diameter Pass
4 mm
Specifications L2
58 mm
Specifications L3
87 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
6.0 mm
