Heavy-Duty ERP Continuous Rope Puller
Heavy-Duty ERP Continuous Rope Puller
SKU:RIG-c4ce80
Powerful high-torque rope puller with 25000 lbs. starting capacity, ideal for long-distance hoisting applications.
Regular price
$8,799.99
Regular price
Sale price
$8,799.99
Unit price
per
Initiate Order
Heavy-Duty ERP Continuous Rope Puller
$8,799.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty ERP Continuous Rope Puller
$8,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty ERP Continuous Rope Puller is a powerhouse designed for high-torque hoist duty with a starting capacity of 25000 lbs. and running capacity of 12500 lbs. This versatile puller features a 15 HP electric motor, 7/8 inches wire rope, and operates at a line speed of 25 FPM. With a robust all-weather construction, controlled pulling and stopping mechanisms, and positive traction, it excels in long-distance car pulling and fixed closed-loop hoisting applications. Built with a safety factor of 5 to 1 and complying with industry standards, this puller ensures durability and reliability even in the most rugged environments.
Product Specifications
Specifications Capacity Running
12500 lbs.
Specifications Capacity Starting
25000 lbs.
Specifications Line Speed
25 FPM
Specifications Model
ERP Continuous Rope Puller
Specifications Motor 230460 3 60 Electric
15 HP
Specifications Net Weight
9075 lbs.
Specifications Winch Height
56 inches
Specifications Winch Length
118 inches
Specifications Winch Width
62 inches
Specifications Wire Rope Size
7/8 inches
Standard Features 0

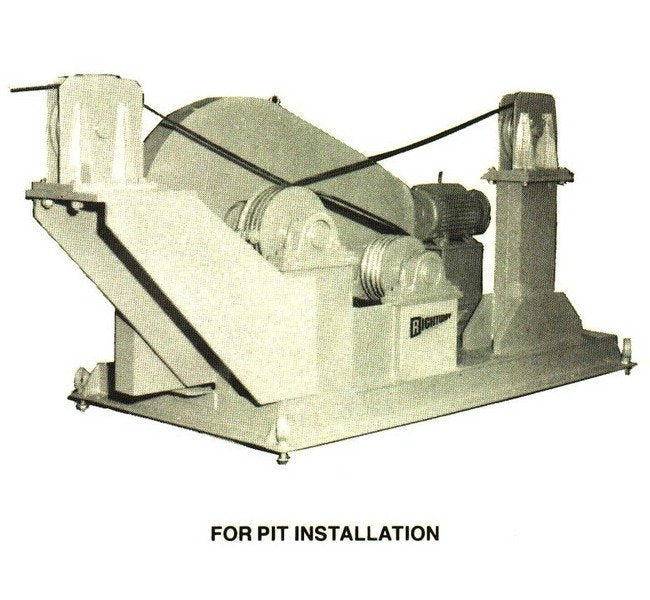

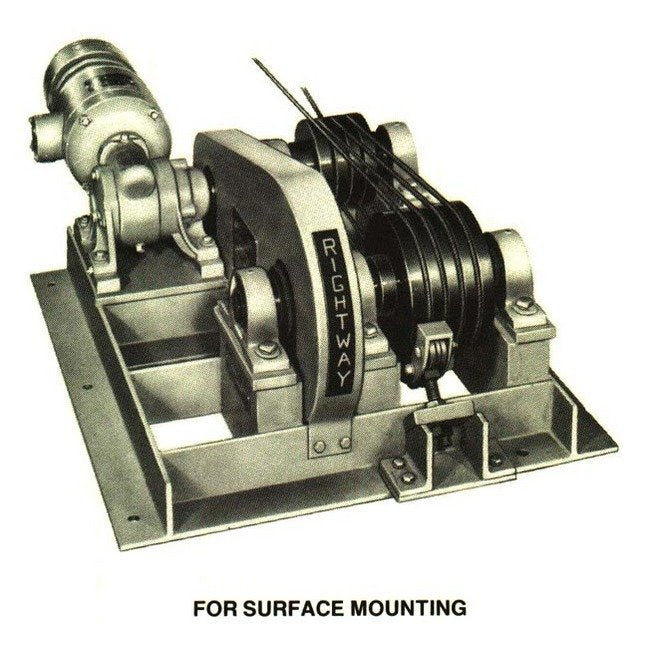

Totally enclosed motor high torque hoist duty Distance unlimited constant speed, constant torque All weather use is ideal for rugged model erp continuous puller Controlled pulling, stopping and spotting Counterweight not required positive traction Mounting at any convenient location Ideally suited for long distance car pulling or fixed closed loop hoisting Rope leads from one side or single lead from opposite sides of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
