Heavy-Duty Expansion Section for Conductor Bar Systems
Heavy-Duty Expansion Section for Conductor Bar Systems
SKU:CRA-4434ed
Durable 700A Heavy-Duty Expansion Section for optimal power transmission in long conductor bar systems.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Heavy-Duty Expansion Section for Conductor Bar Systems
$349.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Expansion Section for Conductor Bar Systems
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

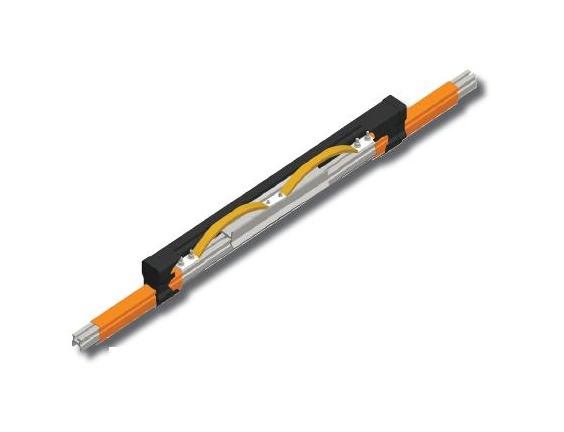

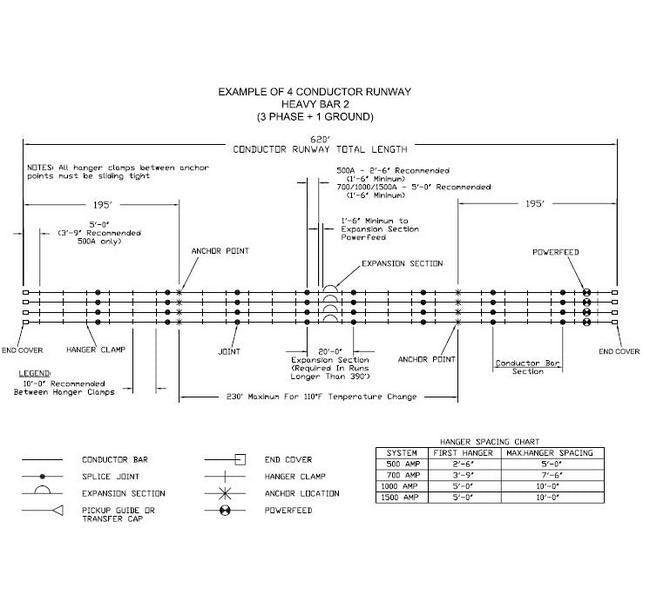

The Heavy-Duty Expansion Section is a vital component designed for structural expansion joints and systems exceeding 390 ft. This PVC section, rated at 700A, ensures reliable power transmission with its durable construction. Featuring a maximum temperature of 160°F and a ground/indoors cover type, this 15.0 ft long section is equipped to handle demanding environments. Additionally, it is compatible with accessories like thermostatically controlled heater wire systems, transfer caps, pick-up guides, and offers flexibility with vertical and horizontal curve options.
Product Specifications
Specifications Amperage Rating
700 A
Specifications Cover Type
Ground / Indoors (Green)
Specifications Length
15.0 ft
Specifications Material
PVC
Specifications Maximum Temperature
160 ºF
Specifications Weight
50.0 lb
