Heavy Duty Eye Nut - Tapped Self-Colored

Name: Heavy Duty Eye Nut - Tapped Self-Colored
Brand: Lexco Cable Manufacturing
SKU: WIR-aae7ac
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-aae7ac

Premium Heavy Duty Eye Nut for robust wire rope applications. 3600 lbs Safe Working Load, 5:1 safety factor.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Eye Nut in Tapped Self-Colored finish is a premium drop forged hardware designed for robust wire rope applications. Featuring a 7/16" Bail Size and 1/2"-13 Tap Size, it offers a Safe Working Load of 3600 lbs with a safety factor of 5 to 1. This nut is ideal for heavy-duty lifting operations and is built to meet stringent quality standards.

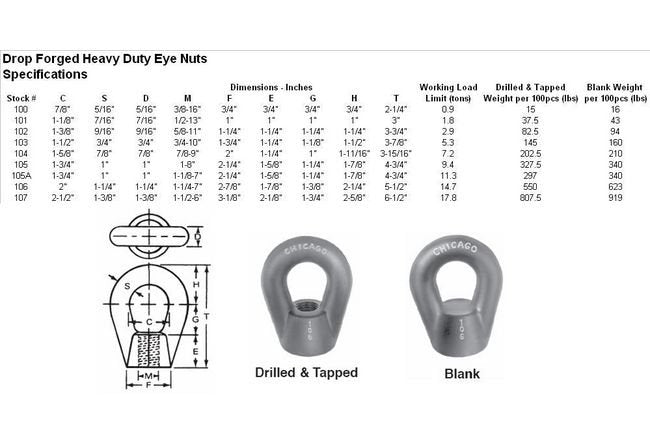

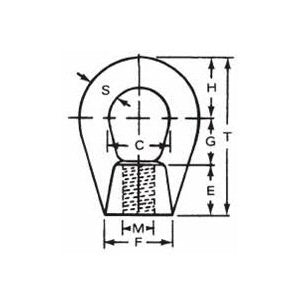

Product Specifications

Specifications Bail Size In

7/16"

Specifications C

1-1/8

Specifications D

7/16

Specifications E

Specifications F

Specifications G

Specifications H Ref

Specifications M

1/2-13

Specifications S

7/16

Specifications Safe Working Load

3600 lbs

Specifications Stock

101

Specifications T

Specifications Tap Size

1/2"-13

CAGE

0T9L4

NAICS

332510

PSC

4030
