Heavy Duty Eye Nut Tapped Self-Colored - Forged Wire Rope Hardware

Name: Heavy Duty Eye Nut Tapped Self-Colored - Forged Wire Rope Hardware
Brand: Lexco Cable Manufacturing
SKU: WIR-48676f
Price: 45.99 USD
Availability: OutOfStock

SKU:WIR-48676f

Heavy Duty Eye Nut Tapped Self-Colored - Forged, Stock #107, 35,600 lbs Safe Working Load

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Eye Nut Tapped Self-Colored is a top-tier wire rope hardware essential crafted to meet rigorous safety standards. With a Bail Size of 1-3/8 inches and a Tap Size of 1-1/2 inches - 6, this eye nut is Stock #107, ensuring robust performance. Its self-colored finish adds durability and corrosion resistance, ideal for industrial applications. Compliant with a Safe Working Load of 35,600 lbs based on a 5 to 1 safety factor, it guarantees reliable vertical pulls. Whether blank or drilled & tapped, this eye nut excels with precision engineering and quality material construction.

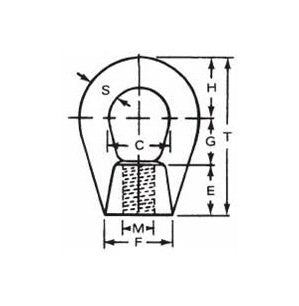

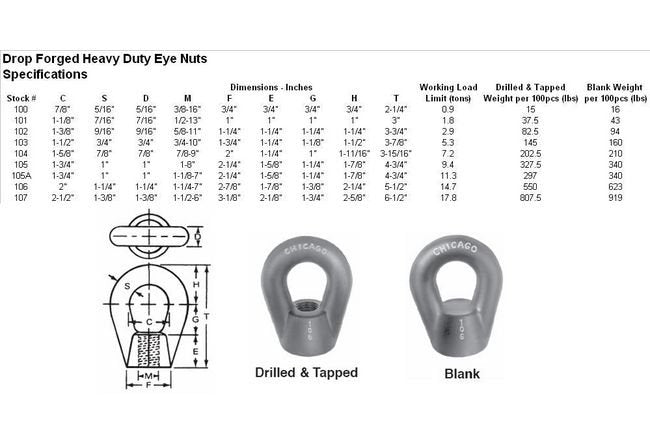

Product Specifications

Specifications Bail Size In

1-3/8"

Specifications C

2-1/2

Specifications D

1-3/8

Specifications E

2-1/8

Specifications F

3-1/8

Specifications G

1-3/4

Specifications H Ref

2-5/8

Specifications M

1-1/2-6

Specifications S

1-3/8

Specifications Safe Working Load

35,600 lbs

Specifications Stock

107

Specifications T

6-1/2

Specifications Tap Size

1-1/2"-6

CAGE

0T9L4

NAICS

332510

PSC

4030
