Heavy Duty Female Non Return Valve - 1 1/2" G-Thread BSP Parallel
Heavy Duty Female Non Return Valve - 1 1/2" G-Thread BSP Parallel
SKU:VAL-028171

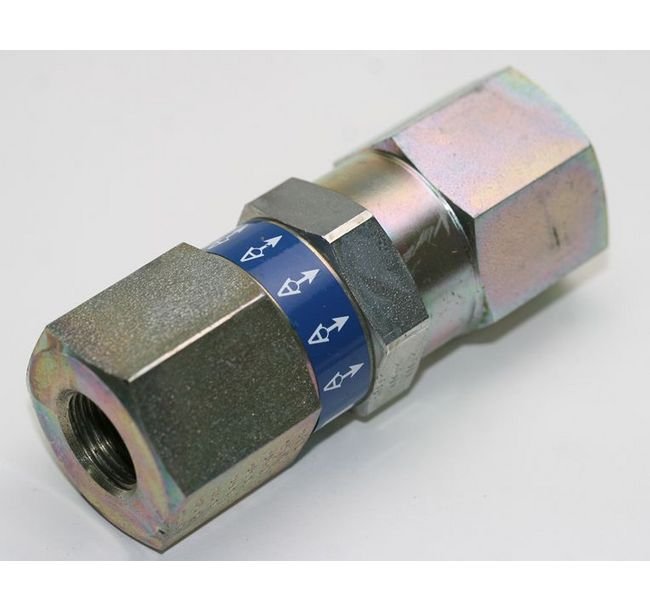

Heavy Duty Hydraulic Check Valve with 1 1/2" G-Thread BSP Parallel. 250 bar pressure, Carbon Steel construction. DIN Valve compatible.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve - 1 1/2" G-Thread BSP Parallel
$99.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve - 1 1/2" G-Thread BSP Parallel
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

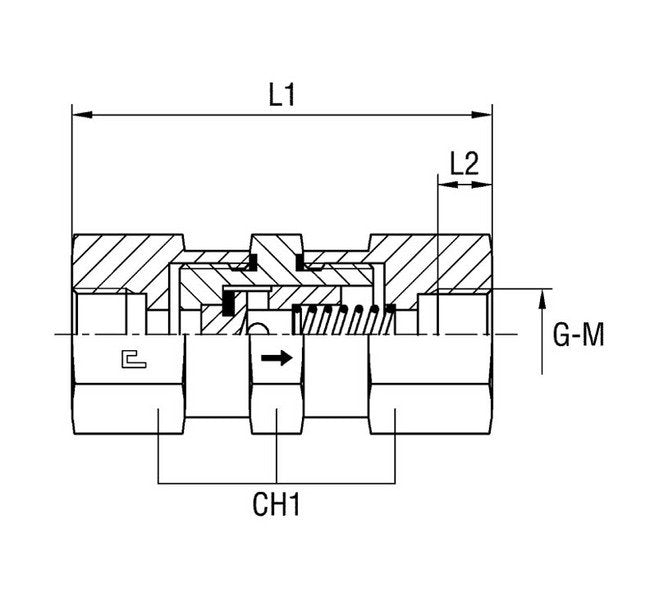

The Heavy Duty Female Non Return Valve with 1 1/2" G-Thread BSP Parallel is a top-performing hydraulic check valve designed for heavy-duty applications. Operating at a nominal pressure of 250 bar, this valve in Carbon Steel ensures reliable performance. With precise dimensions of L1: 142 mm, L2: 25.5 mm, and CH1: 70 mm, this valve features a 29 mm diameter pass, providing efficient fluid control. Ideal for DIN valve setups, this product guarantees durability and optimal functionality, meeting stringent institutional procurement standards.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
29 mm
Specifications G Thread Size
1 1/2
Specifications L1
142 mm
Specifications L2
25.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
