Heavy Duty Female Non Return Valve - 1/2" G-Thread, 400 bar
Heavy Duty Female Non Return Valve - 1/2" G-Thread, 400 bar
SKU:VAL-4ed54e
Heavy Duty Female Non Return Valve for high-pressure hydraulic systems. Stainless steel construction, 1/2" G-Thread, 400 bar. Reliable fluid control.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve - 1/2" G-Thread, 400 bar
$79.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve - 1/2" G-Thread, 400 bar
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

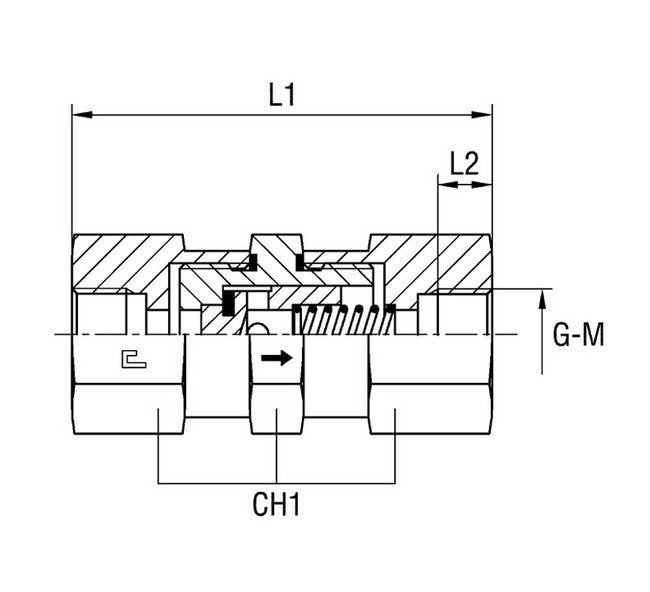

The Female Non Return Valve Thread BSP Parallel is a heavy-duty valve designed for hydraulic systems. With a nominal operating pressure of 400 bar, stainless steel construction, and precise dimensions of 103.0mm (L1) x 17.0mm (L2), this valve ensures reliable performance and durability. It features a 1/2" G-Thread size, a 11mm diameter passage, and a 41mm CH1 dimension. Ideal for DIN Valves, this hydraulic check valve guarantees efficient fluid control in demanding industrial settings.
Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications L1
103.0 mm
Specifications L2
17.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
