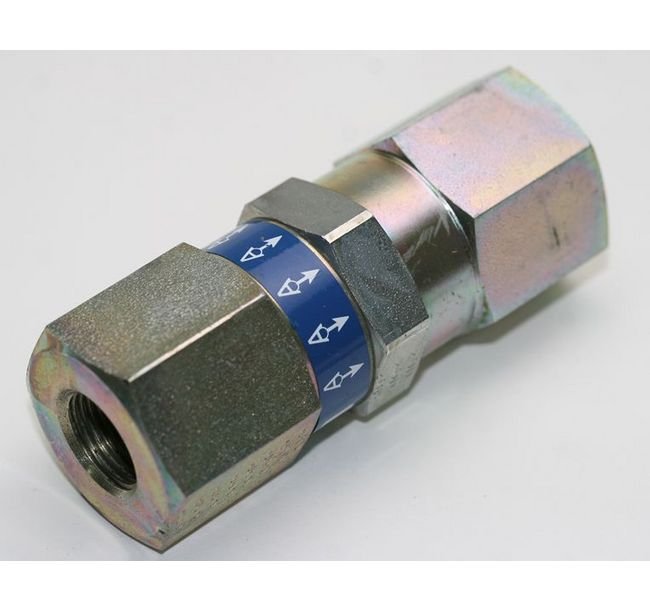

Heavy Duty Female Non Return Valve 1/4" BSP Parallel
Heavy Duty Female Non Return Valve 1/4" BSP Parallel
SKU:VAL-bb94d5
High-pressure Carbon Steel Non Return Valve for hydraulic systems. DIN Valves compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve 1/4" BSP Parallel
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve 1/4" BSP Parallel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

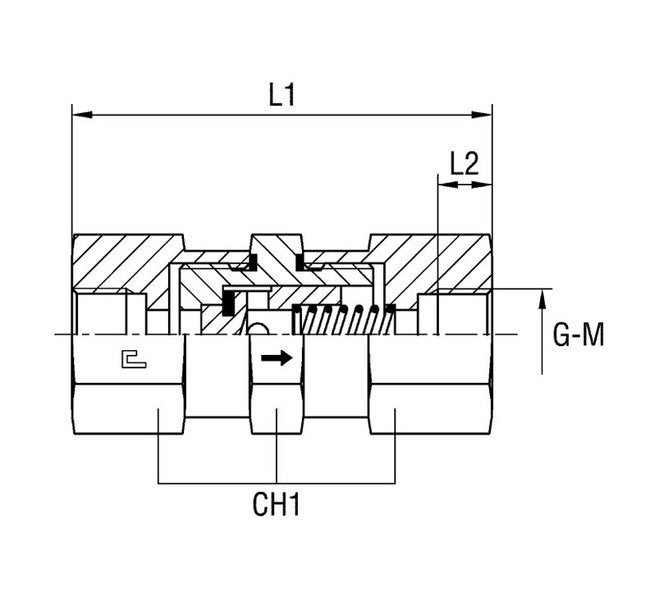

The Heavy Duty Female Non Return Valve Thread BSP Parallel is designed for high-pressure hydraulic systems, with a Nominal Operating Pressure of 400 bar. Constructed from robust Carbon Steel, this valve ensures reliable performance and long-term durability. Featuring a 1/4" G-Thread Size and precise dimensions (L1: 80mm, L2: 14.0mm, CH1: 19.0mm, Diameter Pass: 4mm), it meets the stringent requirements of DIN Valves. Ideal for hydraulic applications where backflow prevention is critical.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/4
Specifications L1
80 mm
Specifications L2
14.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
