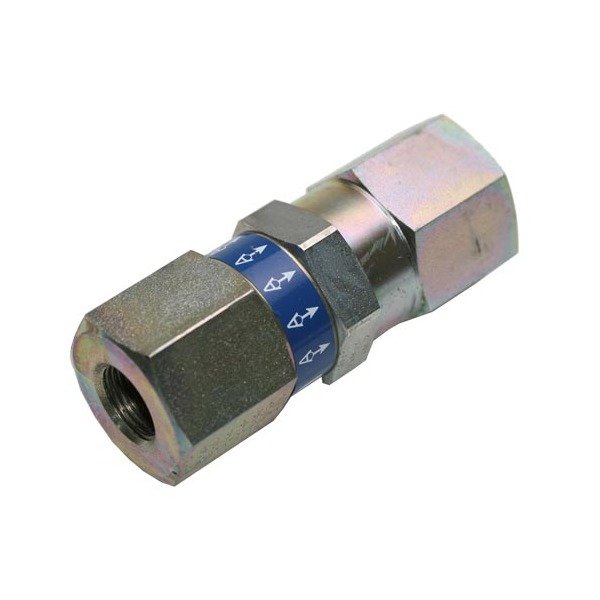

Heavy Duty Female Non Return Valve 1/8 BSP Parallel
Heavy Duty Female Non Return Valve 1/8 BSP Parallel
SKU:FIT-e263fd
High-pressure stainless steel non-return valve for hydraulic systems, G-Thread Size 1/8, 400 bar operating pressure
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve 1/8 BSP Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve 1/8 BSP Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

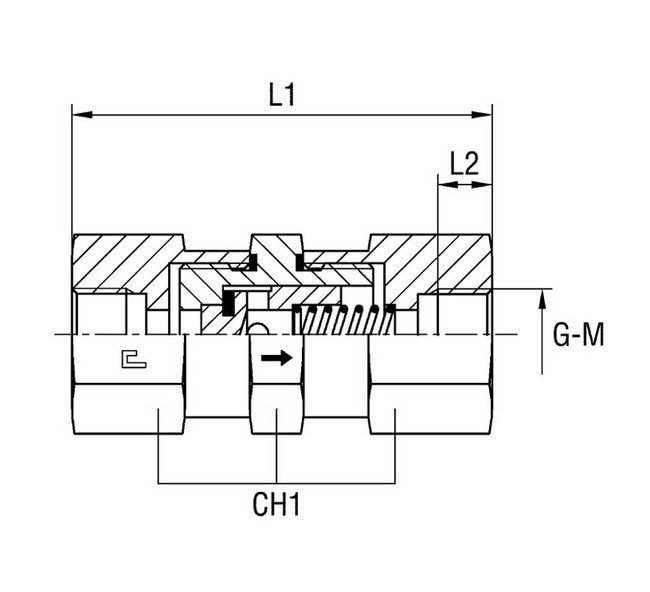

The Heavy Duty Female Non Return Valve Thread BSP Parallel is designed for high-pressure hydraulic systems, with a nominal operating pressure of 400 bar. Crafted from durable stainless steel, this valve ensures reliability and longevity in industrial applications. Its precise dimensions include a G-Thread Size of 1/8, L1 of 70mm, L2 of 10.0mm, CH1 of 19.0mm, and a 4mm Diameter Pass. Ensure fluid control and prevent backflow efficiently with this premium quality non-return valve.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/8
Specifications L1
70 mm
Specifications L2
10.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
