Heavy Duty Female Non Return Valve, 22x1.5 mm Metric Parallel Thread
Heavy Duty Female Non Return Valve, 22x1.5 mm Metric Parallel Thread
SKU:FIT-47d622
Heavy Duty Female Non Return Valve for high-pressure hydraulic applications
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve, 22x1.5 mm Metric Parallel Thread
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve, 22x1.5 mm Metric Parallel Thread
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

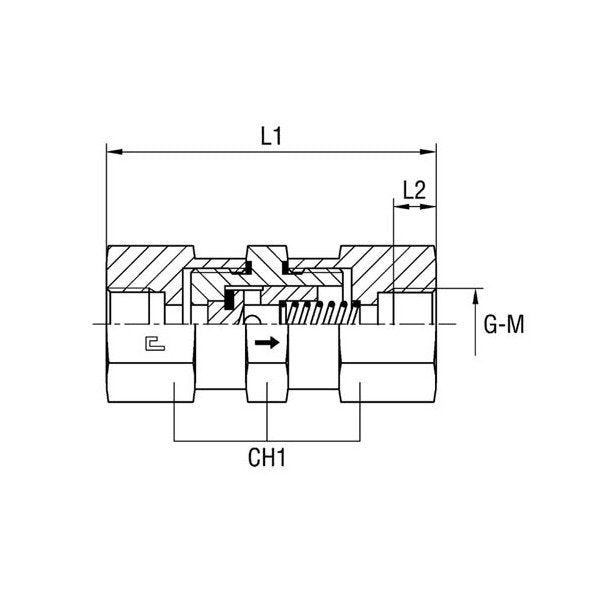

The Heavy Duty Female Non Return Valve with 22x1.5 mm Metric Parallel Thread is a robust hydraulic check valve designed for applications requiring a nominal operating pressure of 400 bar. Crafted from high-quality carbon steel, this valve ensures durability and efficient performance. With precise measurements of L1: 103.0 mm, L2: 16.5 mm, CH1: 41 mm, and a Diameter Pass of 11 mm, this valve guarantees reliable fluid control. Ideal for industrial environments demanding reliable and heavy-duty hydraulic solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications L1
103.0 mm
Specifications L2
16.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
