Heavy Duty Female Non Return Valve 3/4" BSP Parallel
Heavy Duty Female Non Return Valve 3/4" BSP Parallel
SKU:FIT-06686b
Ensure system integrity with our Heavy Duty Non Return Valve - 400 bar pressure, 3/4" G-Thread, carbon steel construction.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve 3/4" BSP Parallel
$45.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve 3/4" BSP Parallel
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

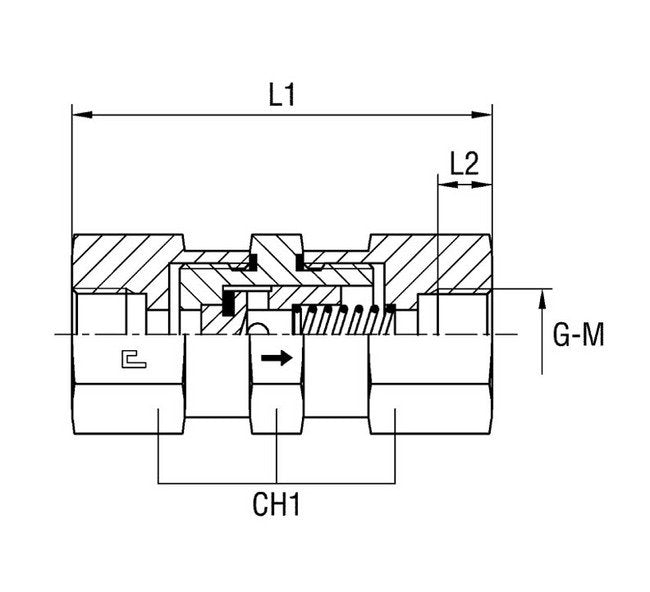

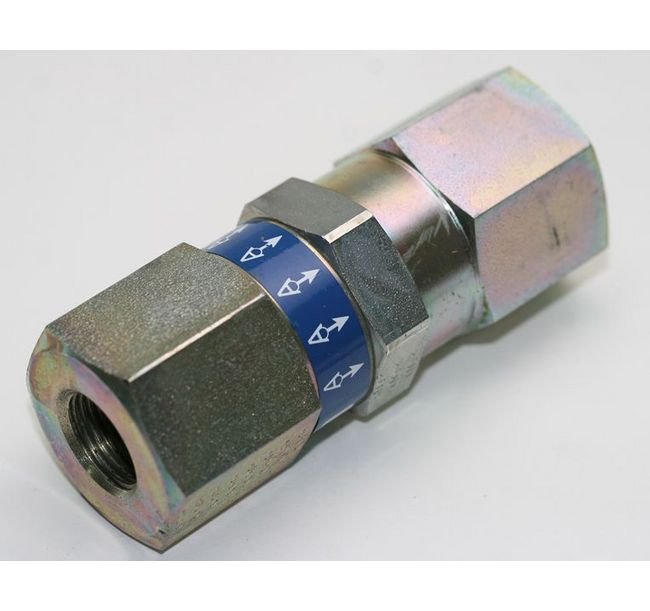

The Female Non Return Valve Thread BSP Parallel is a heavy-duty hydraulic check valve designed for 400 bar nominal operating pressure. Constructed with durable carbon steel, this valve ensures reliable performance in demanding environments. With precise dimensions including 110mm length (L1), 19.0mm length (L2), and a 16mm diameter pass, it meets the stringent requirements of industrial applications. Trust this valve to prevent backflow efficiently and maintain system integrity.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
16 mm
Specifications G Thread Size
3/4
Specifications L1
110 mm
Specifications L2
19.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
