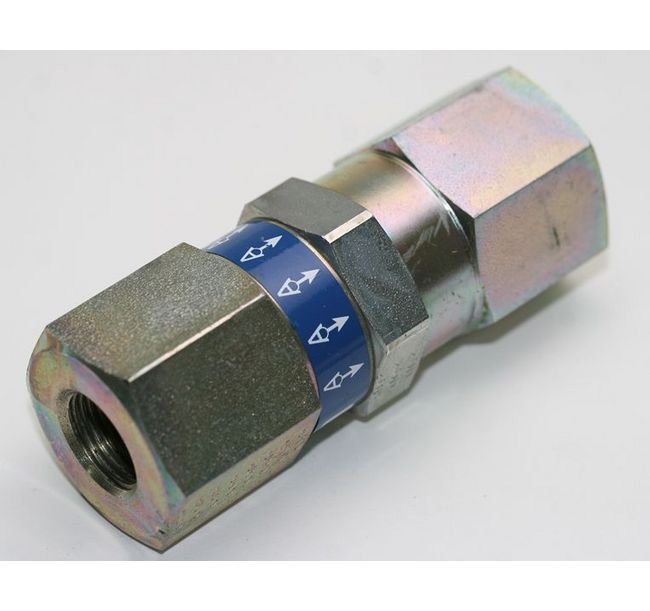

Heavy Duty Female Non Return Valve - 3/4" G Thread, 400 Bar
Heavy Duty Female Non Return Valve - 3/4" G Thread, 400 Bar
SKU:VAL-06686b
Reliable Heavy Duty Non Return Valve for industrial hydraulic systems. Operating pressure: 400 bar. 3/4" G Thread.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve - 3/4" G Thread, 400 Bar
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve - 3/4" G Thread, 400 Bar
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

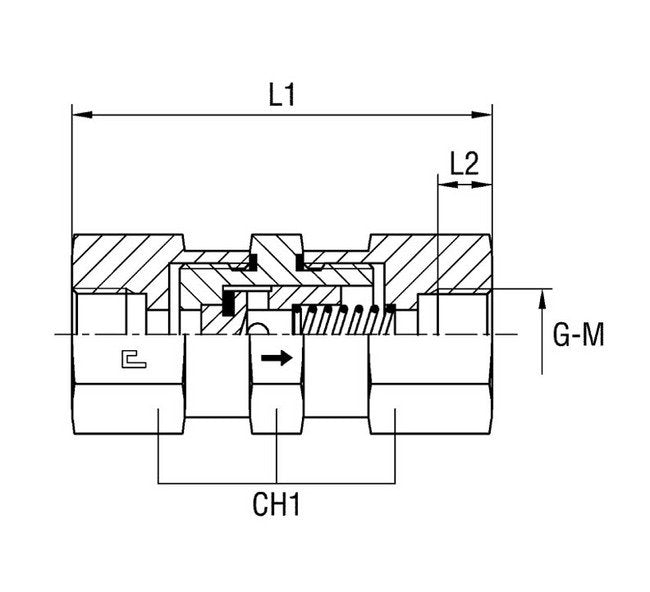

The Heavy Duty Female Non Return Valve with 3/4" G Thread BSP Parallel ensures reliable hydraulic flow control with a nominal operating pressure of 400 bar. Crafted from Carbon Steel, this valve combines durability with precise functionality for industrial applications. Its design features a diameter pass of 16mm, 110mm total length, and 19.0mm L2 for seamless integration. Suitable for DIN Valves and Hydraulic Check Valves.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
16 mm
Specifications G Thread Size
3/4
Specifications L1
110 mm
Specifications L2
19.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
