Heavy Duty Female Non Return Valve BSP Parallel - 1/8, 400 bar
Heavy Duty Female Non Return Valve BSP Parallel - 1/8, 400 bar
SKU:VAL-e263fd
Ensure secure fluid control with the Heavy Duty Female Non Return Valve BSP Parallel - 1/8, 400 bar. Stainless steel construction for reliability.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve BSP Parallel - 1/8, 400 bar
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve BSP Parallel - 1/8, 400 bar
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

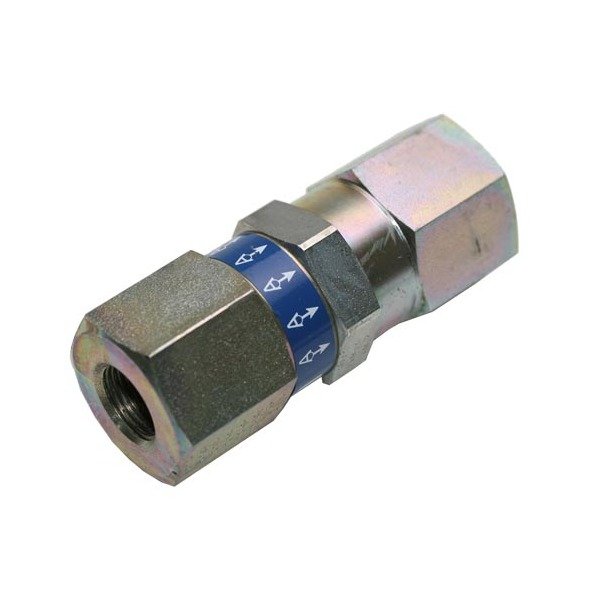

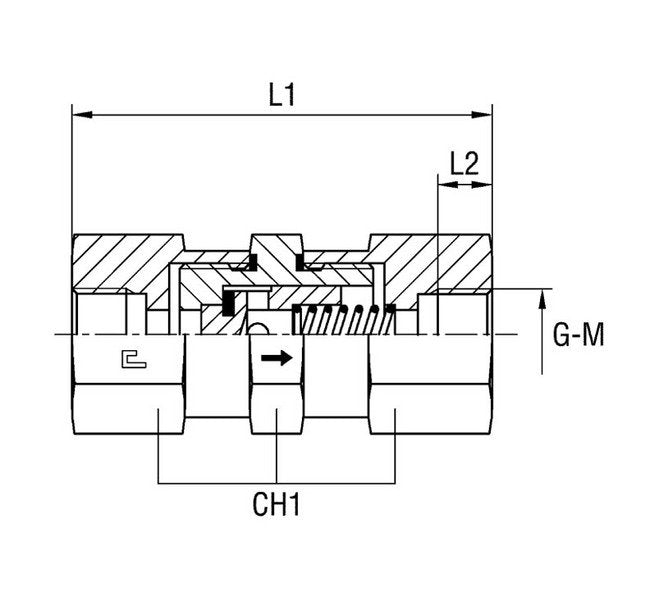

The Heavy Duty Female Non Return Valve BSP Parallel is designed for reliable fluid control in hydraulic systems, featuring a heavy-duty stainless steel construction. With a nominal operating pressure of 400 bar, this valve ensures secure flow control. The G-Thread Size of 1/8, along with precise dimensions of L1: 70 mm, L2: 10.0 mm, CH1: 19.0 mm, and Diameter Pass.: 4 mm, provides efficient performance. Ideal for DIN Check Valve applications, this valve offers durability and consistent operation for industrial settings.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/8
Specifications L1
70 mm
Specifications L2
10.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
