Heavy Duty Female Non Return Valve - DIN Check Valve
Heavy Duty Female Non Return Valve - DIN Check Valve
SKU:VAL-6aea81
Durable Carbon Steel Non Return Valve for hydraulic systems, 250 bar operating pressure, prevents backflow effectively.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve - DIN Check Valve
$45.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve - DIN Check Valve
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Female Non Return Valve is designed for industrial applications requiring a reliable hydraulic check valve. With a Nominal Operating Pressure of 250 bar and made of Carbon Steel, this valve ensures durability and optimal performance. The M - Thread Size of 33x2, 122 mm in L1, and 18 mm in Diameter Pass. make it suitable for various hydraulic systems. Trust this valve to maintain system integrity and prevent backflow efficiently.

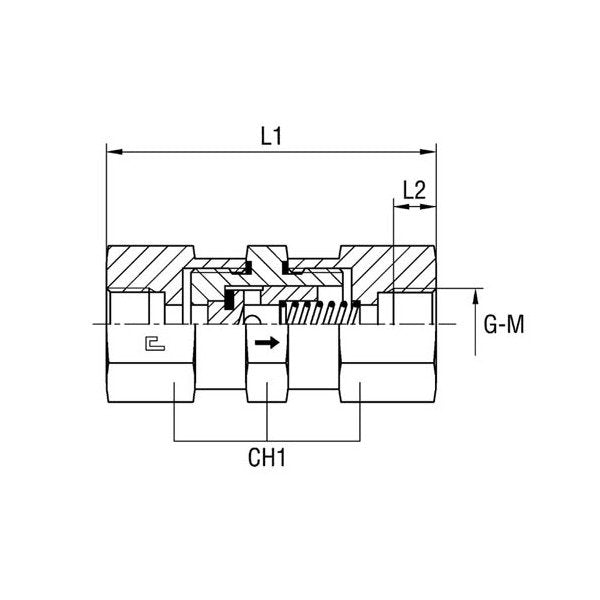

Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications L1
122 mm
Specifications L2
21.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
33x2
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
