Heavy-Duty Female Non Return Valve, M Thread 42x2, 250 Bar
Heavy-Duty Female Non Return Valve, M Thread 42x2, 250 Bar
SKU:VAL-6472b9
High-quality Heavy-Duty Female Non Return Valve for hydraulic systems. 250 bar pressure, stainless steel construction for durability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty Female Non Return Valve, M Thread 42x2, 250 Bar
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Female Non Return Valve, M Thread 42x2, 250 Bar
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

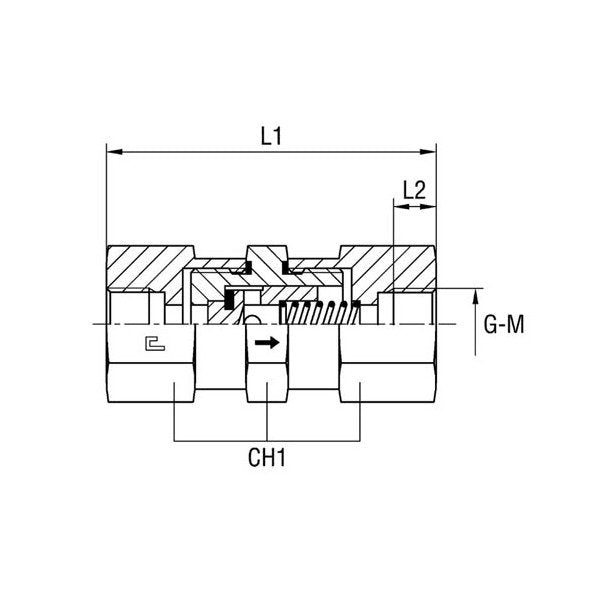

The Heavy-Duty Female Non Return Valve with Metric Parallel Threads is a top-quality hydraulic check valve designed for heavy-duty applications. With a nominal operating pressure of 250 bar, this valve ensures reliable performance under high pressure. Crafted from stainless steel, it offers durability and corrosion resistance, making it ideal for industrial settings. The precise dimensions of L1: 142 mm, L2: 23.0 mm, CH1: 70 mm, and Diameter Pass.: 29 mm ensure a secure fit and effective flow control. Trust this valve for efficient and dependable hydraulic operations.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
29 mm
Specifications L1
142 mm
Specifications L2
23.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
