Heavy Duty Female Non Return Valve - M48x2, 250 Bar Pressure
Heavy Duty Female Non Return Valve - M48x2, 250 Bar Pressure
SKU:FIT-b37c59
Reliable Heavy Duty Female Non Return Valve - Ideal for Hydraulic Systems
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve - M48x2, 250 Bar Pressure
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve - M48x2, 250 Bar Pressure
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

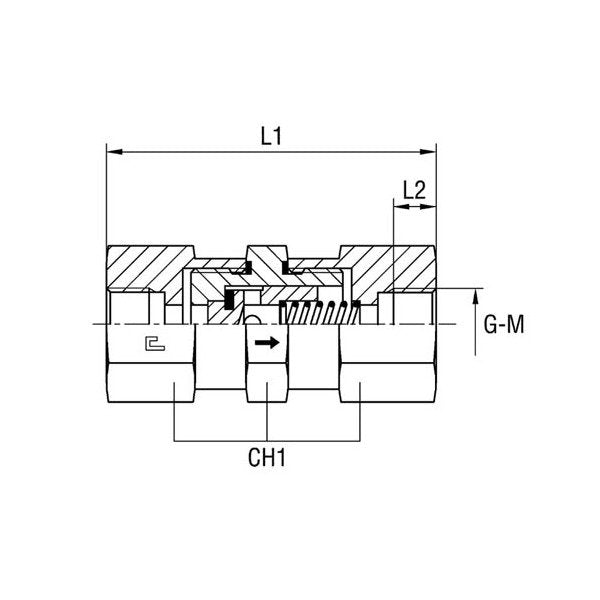

The Heavy Duty Female Non Return Valve Thread Metric Parallel is designed for reliable hydraulic applications, featuring a pressure rating of 250 bar. Constructed with high-quality Stainless Steel, this valve ensures durability and precision performance. With dimensions of L1: 142 mm, L2: 25.0 mm, CH1: 70 mm, and a Pass Diameter of 29 mm, it guarantees seamless functionality in demanding industrial settings.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
29 mm
Specifications L1
142 mm
Specifications L2
25.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
48x2
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
