Heavy Duty Female Non-Return Valve - NPT Taper, 400 Bar
Heavy Duty Female Non-Return Valve - NPT Taper, 400 Bar
SKU:FIT-c6eb86
High-performance Female Non-Return Valve for heavy-duty hydraulic systems. Operates at 400 bar pressure. Durable carbon steel construction.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Heavy Duty Female Non-Return Valve - NPT Taper, 400 Bar
$69.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non-Return Valve - NPT Taper, 400 Bar
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

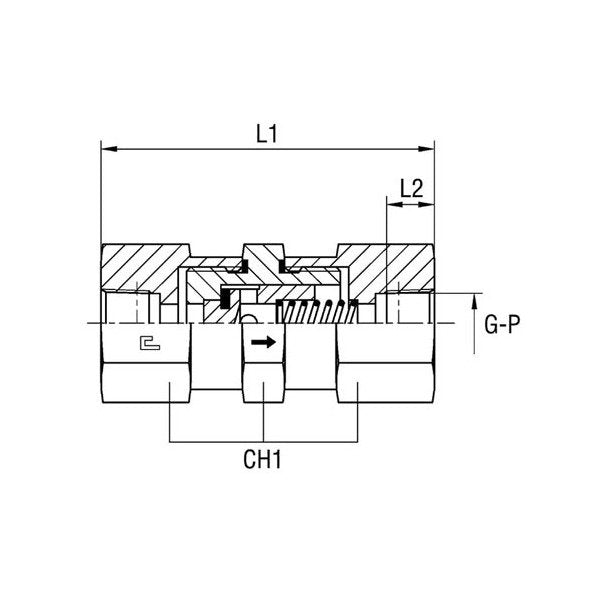

The Female Non Return Valve Thread NPT Taper is a heavy-duty hydraulic check valve designed for industrial applications. With a nominal operating pressure of 400 bar, P-Thread Size of 3/4, 110mm L1, 19.5mm L2, and constructed from carbon steel, this valve ensures reliable performance under high-pressure conditions. Its 16mm diameter passageway and 50mm CH1 provide efficient flow control and durability. Ideal for hydraulic systems requiring stringent pressure regulation.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
16 mm
Specifications L1
110 mm
Specifications L2
19.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications P Thread Size
3/4
