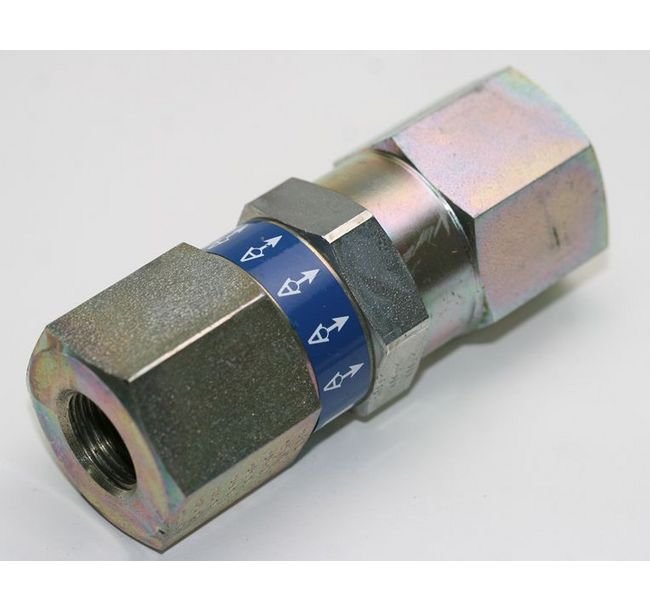

Heavy Duty Female Non Return Valve Thread BSP Parallel - 1/8"
Heavy Duty Female Non Return Valve Thread BSP Parallel - 1/8"
SKU:FIT-1e3007
Reliable Heavy Duty Female Non Return Valve for high-pressure hydraulic systems. Carbon Steel construction with BSP Parallel threads, ideal for industrial use.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve Thread BSP Parallel - 1/8"
$34.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve Thread BSP Parallel - 1/8"
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

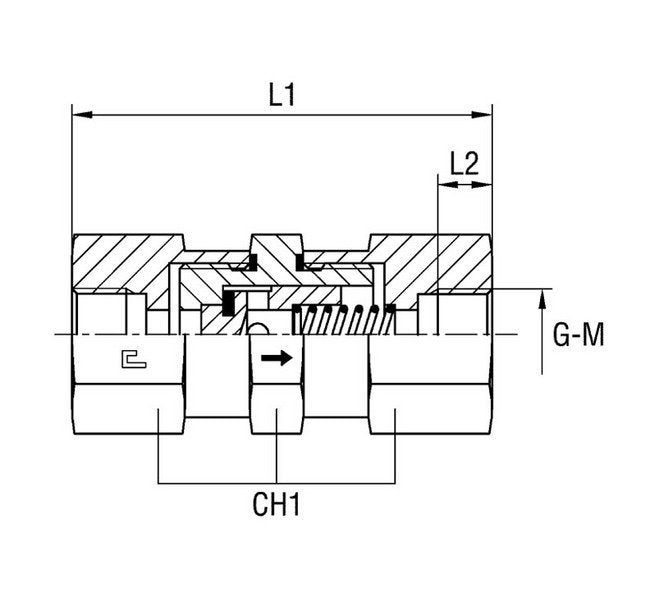

The Heavy Duty Female Non Return Valve with BSP Parallel threads is designed for industrial hydraulic systems requiring a robust pressure rating of 400 bar. Constructed from durable Carbon Steel, this valve ensures reliable performance in demanding environments. With precise dimensions including G-Thread Size of 1/8", L1 length of 70mm, and a Diameter Pass. of 4mm, this valve is ideal for hydraulic check valve applications.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/8
Specifications L1
70 mm
Specifications L2
10.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
