Heavy Duty Female Non Return Valve Thread BSP Parallel - 3/8" G-Thread, 400 bar

Name: Heavy Duty Female Non Return Valve Thread BSP Parallel - 3/8" G-Thread, 400 bar
Brand: World Wide Metric, Inc.
SKU: FIT-e2712e
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-e2712e

Ensure reliable flow control in high-pressure hydraulic systems with our Heavy Duty Female Non Return Valve Thread BSP Parallel - 3/8" G-Thread, 400 bar.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

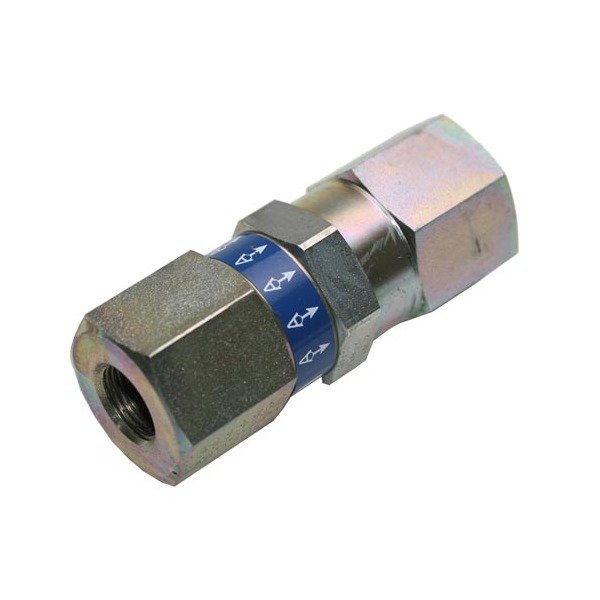

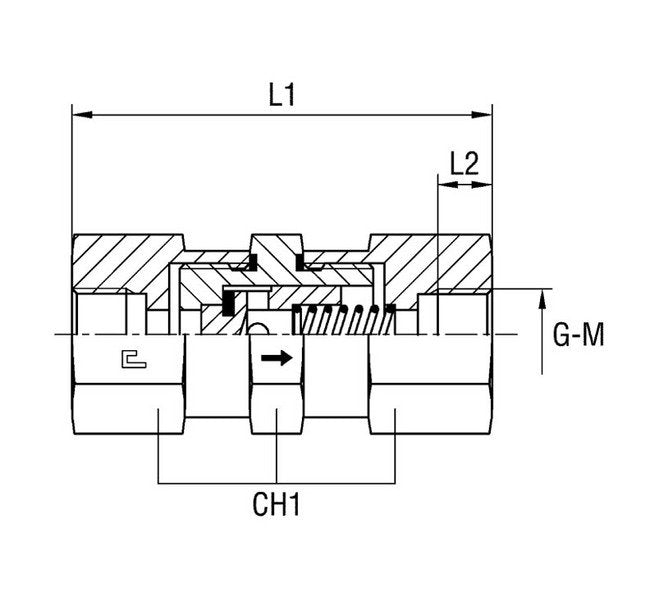

The Heavy Duty Female Non Return Valve Thread BSP Parallel is a robust hydraulic check valve designed for high-pressure applications up to 400 bar. Crafted from premium stainless steel, this valve ensures durability and reliability. With precise dimensions of 88mm (L1), 14.0mm (L2), and a pass diameter of 8mm, it offers efficient flow control. Ideal for industrial settings requiring stringent performance, this valve guarantees optimal functionality and longevity.

Product Specifications

Specifications Ch1

32 mm

Specifications Diameter Pass

8 mm

Specifications G Thread Size

3/8

Specifications L1

88 mm

Specifications L2

14.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Heavy Duty Female Non Return Valve Thread BSP Parallel - 3/8" G-Thread, 400 bar
