Heavy Duty Female Non Return Valve Thread BSP Taper - 250 bar Pressure Rating
Heavy Duty Female Non Return Valve Thread BSP Taper - 250 bar Pressure Rating
SKU:FIT-1546fc
Reliable Heavy Duty Female Non Return Valve for 250 bar pressure hydraulic systems
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve Thread BSP Taper - 250 bar Pressure Rating
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve Thread BSP Taper - 250 bar Pressure Rating
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

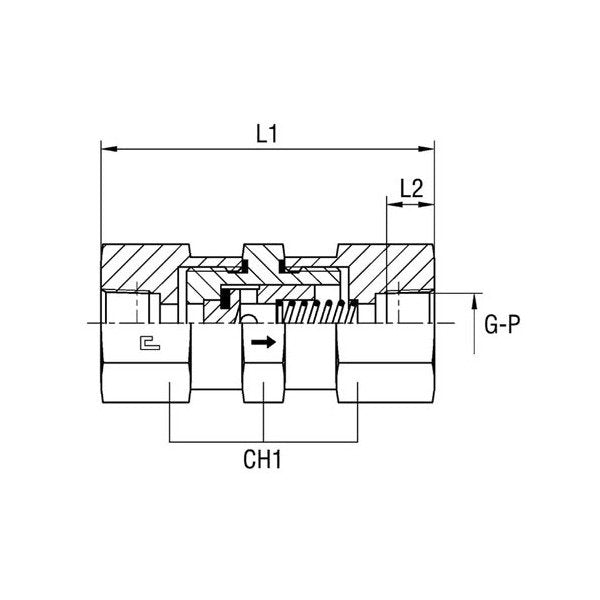

The Heavy Duty Female Non Return Valve Thread BSP Taper is designed for reliability in hydraulic systems, with a nominal operating pressure of 250 bar. Crafted from Carbon Steel, this valve ensures durability and performance under high-pressure conditions. Featuring a G-Thread Size of 1, and precise dimensions of L1: 122mm, L2: 23.5mm, and CH1: 50mm, it offers efficient flow control with a Diameter Pass of 18mm. Ideal for hydraulic check valve applications requiring heavy-duty performance.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications G Thread Size
1
Specifications L1
122 mm
Specifications L2
23.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
