Heavy Duty Female Non Return Valve - Thread Metric Parallel 14x1.5
Heavy Duty Female Non Return Valve - Thread Metric Parallel 14x1.5
SKU:VAL-3d08e5
Premium Heavy Duty Non Return Valve for Hydraulic Systems - 400 bar Nominal Pressure, Stainless Steel Construction
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve - Thread Metric Parallel 14x1.5
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve - Thread Metric Parallel 14x1.5
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

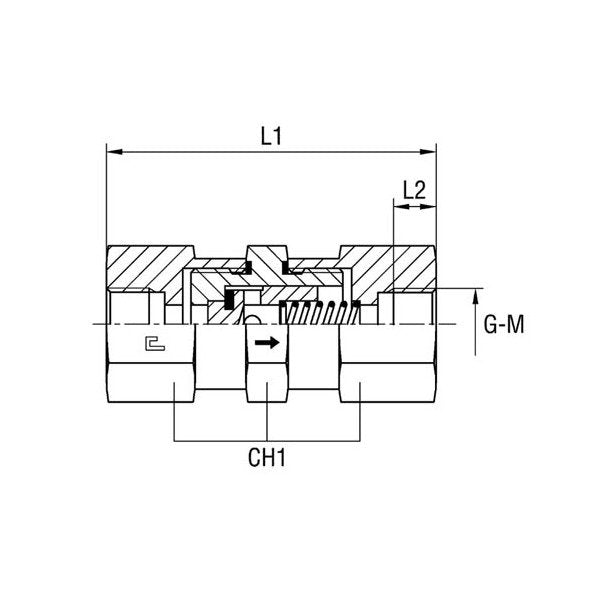

The Heavy Duty Female Non Return Valve in Thread Metric Parallel 14x1.5 is designed for robust hydraulic applications with a nominal operating pressure of 400 bar. Crafted from high-grade Stainless Steel, this valve ensures durability and precision. With dimensions meeting industry standards, such as 80 mm (L1), 14.5 mm (L2), and 19.0 mm (CH1), this valve offers reliable performance under high pressure environments.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications L1
80 mm
Specifications L2
14.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
