Heavy Duty Female Non Return Valve Thread Metric Parallel - 22x1.5 - Stainless Steel
Heavy Duty Female Non Return Valve Thread Metric Parallel - 22x1.5 - Stainless Steel
SKU:VAL-ae4c85
Heavy Duty Non Return Valve for 400 bar pressure, 22x1.5 size, Stainless Steel construction
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve Thread Metric Parallel - 22x1.5 - Stainless Steel
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve Thread Metric Parallel - 22x1.5 - Stainless Steel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Female Non Return Valve Thread Metric Parallel is designed for heavy-duty applications with a nominal operating pressure of 400 bar. Crafted from durable stainless steel, this valve ensures reliable performance. With precise dimensions and a 11mm diameter pass, it meets stringent industry standards for hydraulic systems.

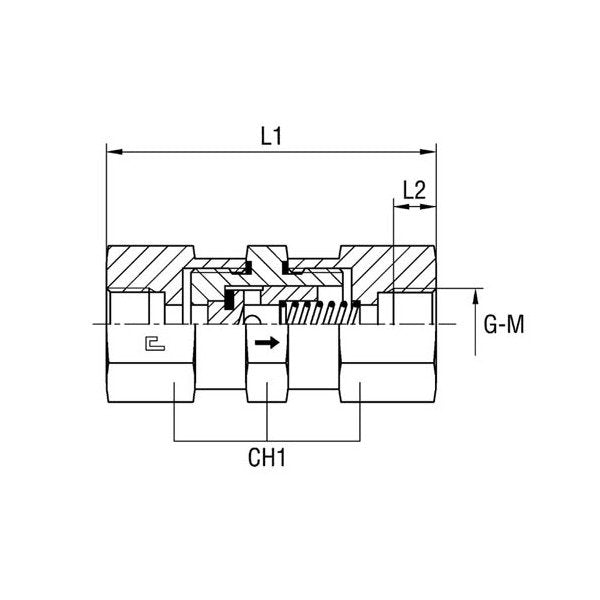

Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications L1
103.0 mm
Specifications L2
16.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
