Heavy Duty Female Non Return Valve Thread Metric Parallel - 33x2
Heavy Duty Female Non Return Valve Thread Metric Parallel - 33x2
SKU:FIT-1b1062
High-performance hydraulic check valve with Stainless Steel construction for heavy-duty applications. Nominal Pressure: 250 bar.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve Thread Metric Parallel - 33x2
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve Thread Metric Parallel - 33x2
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

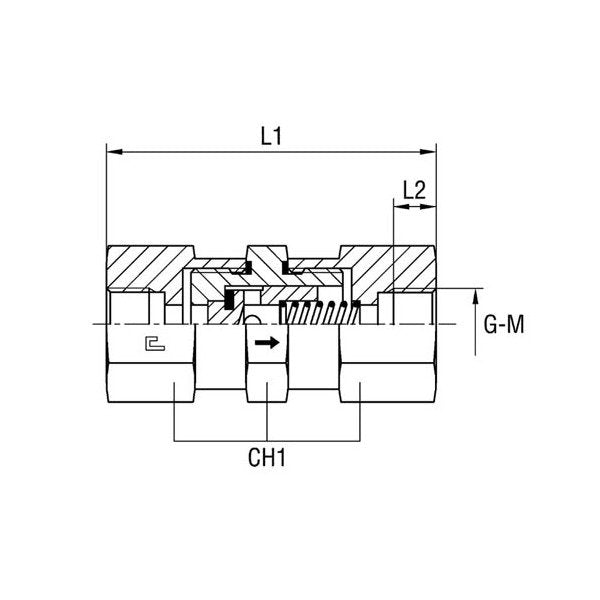

The Heavy Duty Female Non Return Valve Thread Metric Parallel, designed for hydraulic systems, ensures reliable operation at up to 250 bar nominal pressure. Constructed with Stainless Steel, this valve features precise dimensions (L1: 122mm, L2: 21.0mm, CH1: 50mm) and a Diameter Pass. of 18mm. With its M - Thread Size of 33x2, this valve delivers exceptional performance and durability for various industrial applications.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications L1
122 mm
Specifications L2
21.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
33x2
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
