Heavy Duty Female Non Return Valve Thread NPT Taper - 1 1/4" - Stainless Steel

Name: Heavy Duty Female Non Return Valve Thread NPT Taper - 1 1/4" - Stainless Steel
Brand: World Wide Metric, Inc.
SKU: FIT-2cb925
Price: 129.99 USD
Availability: OutOfStock

SKU:FIT-2cb925

Reliable Heavy Duty Hydraulic Check Valve for High-Pressure Applications - Stainless Steel Construction

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

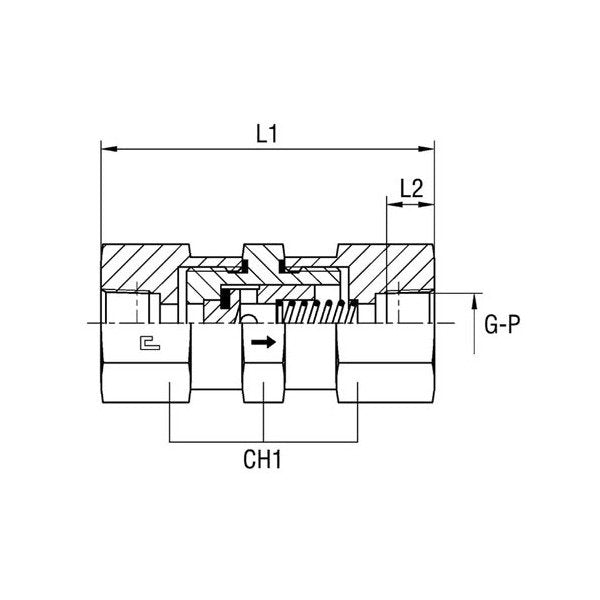

The Female Non Return Valve Thread NPT Taper is a heavy-duty hydraulic check valve designed for demanding applications. With a nominal operating pressure of 250 bar, this valve ensures reliable performance under high-pressure conditions. Crafted from premium stainless steel, it offers durability and corrosion resistance. Featuring a P-thread size of 1 1/4", L1 of 142mm, L2 of 24.0mm, CH1 of 70mm, and a pass diameter of 29mm, this valve is engineered for efficiency and precision. Ideal for industrial and institutional use.

Product Specifications

Specifications Ch1

70 mm

Specifications Diameter Pass

29 mm

Specifications L1

142 mm

Specifications L2

24.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Heavy Duty

Specifications P Thread Size

1 1/4
