Heavy Duty Female Non Return Valve Thread NPT Taper
Heavy Duty Female Non Return Valve Thread NPT Taper
SKU:FIT-4a1575
Reliable Heavy Duty Non Return Valve for high-pressure hydraulic systems. Carbon Steel construction, 250 bar Nominal Operating Pressure.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
Heavy Duty Female Non Return Valve Thread NPT Taper
$65.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Non Return Valve Thread NPT Taper
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

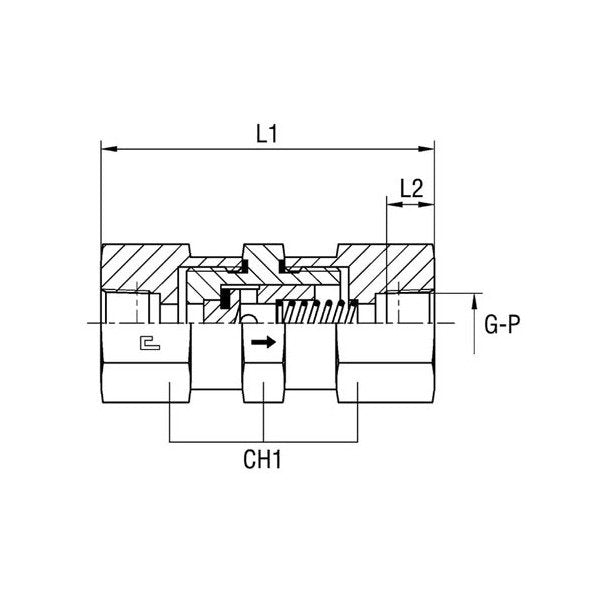

The Heavy Duty Female Non Return Valve Thread NPT Taper is designed for high-pressure hydraulic systems, with a Nominal Operating Pressure of 250 bar. Constructed from durable Carbon Steel, this valve ensures reliable performance in demanding industrial environments. Its precise P-Thread Size of 1, coupled with dimensions including L1: 122mm, L2: 23.5mm, CH1: 50mm, and Diameter Pass.: 18mm, makes it a key component for hydraulic check valve applications.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications L1
122 mm
Specifications L2
23.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications P Thread Size
1
