Heavy Duty Female Rod End - EM/EF Series
Heavy Duty Female Rod End - EM/EF Series
SKU:PUS-b878a7
Heavy Duty Female Rod End - EM/EF Series for commercial applications, featuring precise specs, high axial load capacity, and durable construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy Duty Female Rod End - EM/EF Series
$24.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Female Rod End - EM/EF Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

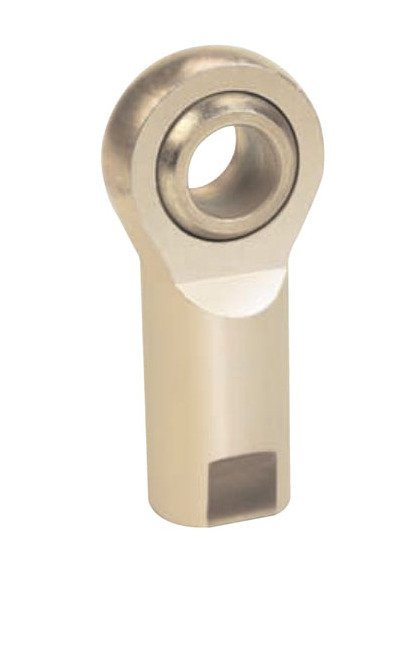

The Heavy Duty Female Rod End from our EM/EF Series is designed for commercial applications requiring a reliable, metal to metal connection. With precise specifications such as a ball bore of 0.2500" and a static load capacity of 3470 lb, this rod end ensures optimal performance in high axial load scenarios. Its low carbon steel construction with zinc plating and yellow dichromate treatment offers durability and corrosion resistance. Ideal for various mechanical motion transfer devices in construction, lawn & garden, and truck/bus industries. This 2-piece rod end operates seamlessly in temperatures ranging from -65 ºF to 250 ºF, meeting SAE spec J1120.
Product Specifications
Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

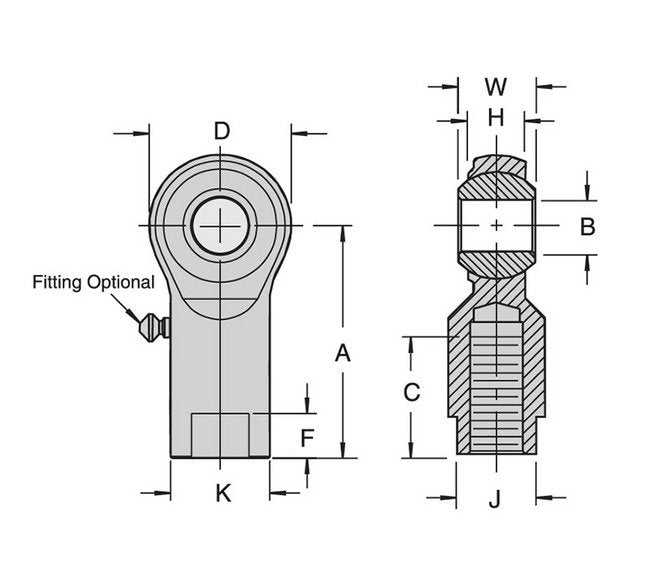

Specifications Ball Bore B 00020 00000
0.2500 "
Specifications Ball Diameter Ref
0.469 "
Specifications Ball Width W 0005
0.375 "
Specifications Centerline Length A 0015
1.312 "
Specifications Head Diameter D 0015
0.750 "
Specifications Housing Width H Ref
0.281 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Shank Diameter K 0015
0.469 "
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
0.687 "
Specifications Thread Size Unf 2b
1/4-28 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
3470 lb
Specifications Weight
0.062 lb
Specifications Wrench Flat Length F 0030
0.250 "
Specifications Wrench Flat Width J 0015
0.375 "
Studded Dimensions L Ref
0.469 "
Studded Dimensions Min Thread Length S
0.500 "
Studded Dimensions P 0030
0.563 "
Studded Dimensions Rod End Bore Size
1/4 "
Studded Dimensions Thread Size N Unf 2a
1/4-28 "
CAGE
0T9L4
NAICS
332510
PSC
4030
