Heavy-Duty Figure 8 Swing Links for Cable Pulling - 3/4" Size

Name: Heavy-Duty Figure 8 Swing Links for Cable Pulling - 3/4" Size
Brand: Colonial Teltek
SKU: PUL-5f7fda
Price: 29.99 USD
Availability: OutOfStock

SKU:PUL-5f7fda

Enhance efficiency with our Heavy-Duty Figure 8 Swing Links - 3/4" size, 3600 lbs working load capacity. Ideal for cable stringing applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

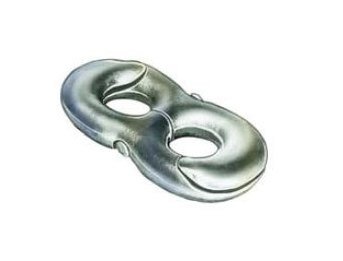

Enhance cable pulling efficiency with our Heavy-Duty Figure 8 Swing Links. Designed for quick connections to winch lines or pulling harnesses, these links feature a 3/4" size with a working load capacity of 3600 lbs. They are perfectly suited for cable stringing applications, ensuring secure and reliable connections. The Figure 8 design offers enhanced strength and durability, making it ideal for heavy-duty use in industrial settings. Compliant with industry standards, these links provide a dependable solution for cable pulling tasks.

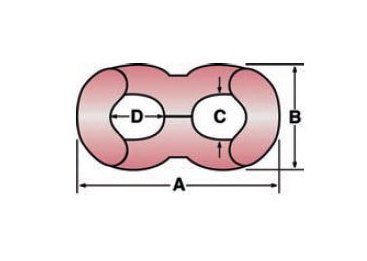

Product Specifications

Specifications Eye Id C In

0.94

Specifications Eye Id C Mm

Specifications Eye Id D In

1.13

Specifications Eye Id D Mm

Specifications Eye To Eye Connectors Size

All

Specifications Length A In

5.00

Specifications Length A Mm

127

Specifications Pulling Eye Cable Size Range

1000 to 2500 kcmil

Specifications Pulling Harnesses Large Front Link

1/8, 1/4, 3/8, 2 x 1/2, Chain

Specifications Pulling Harnesses Separate Leg Ends

All Cable

Specifications Size In

3/4

Specifications Size Mm

Specifications Width B In

2.50

Specifications Width B Mm

Specifications Working Load Lb

3600

Specifications Working Load N

16013

Heavy-Duty Figure 8 Swing Links for Cable Pulling - 3/4" Size
