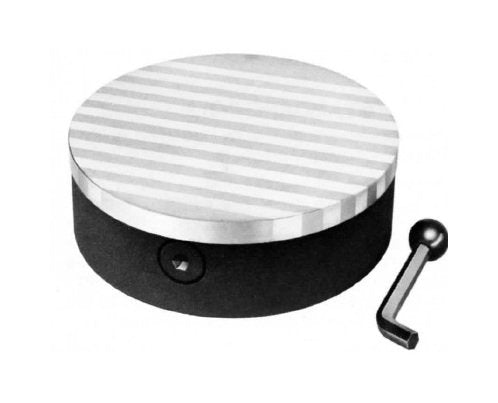

Heavy Duty Fine Pole Rotary Chuck
Heavy Duty Fine Pole Rotary Chuck
SKU:HIG-d3aedd
High magnetic strength rotary chuck for lathes and grinders, durable and customizable. Additional sizes available.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Heavy Duty Fine Pole Rotary Chuck
$249.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Fine Pole Rotary Chuck
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Fine Pole Rotary Chuck offers exceptional magnetic strength and durability for precise and secure workholding on lathes, grinders, and machinery with rotating spindles. Constructed with magnetic steel and nonmagnetic stainless furnace brazed top plates, this chuck can withstand high torque from heavy lathe cuts. With pole spacing of 1/8 inch and a weight of 16 lb, it provides stable and reliable performance. The chuck's versatility allows for customization through machining for odd configurations or adding auxiliary plates. Additional sizes, including 7 to 9 in. and 14 in. round, are available upon request.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
7 to 9 in. and 14 in. Round available on request.

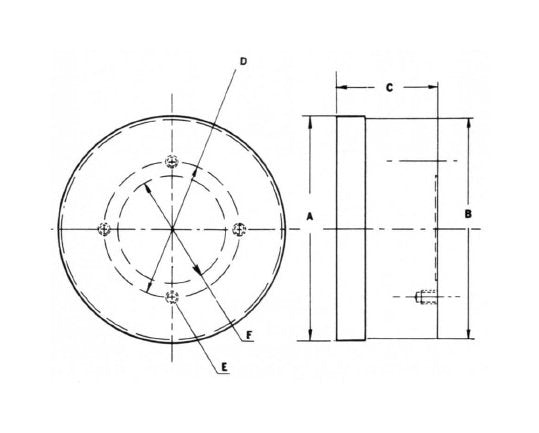

Specifications Dimension A
6 5/16 in
Specifications Dimension B
6 3/16 in
Specifications Dimension C
3 in
Specifications Dimension D
4 1/2 in
Specifications Dimension E
3/8 in -16 X 3/8 in
Specifications Dimension F
3 3/4 in
Specifications Number Of Holes
4
Specifications Pole Spacing
1/8 in
Specifications Weight
16 lb
