Heavy-Duty Fixed Head Innerduct Pulling Eyes
Heavy-Duty Fixed Head Innerduct Pulling Eyes
SKU:CON-fde8db
Enhance cable pulling with Heavy-Duty Pulling Eyes for secure, high-strength connections in innerducts. Prevent dislodgement even under extreme tension.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Fixed Head Innerduct Pulling Eyes
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Fixed Head Innerduct Pulling Eyes
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

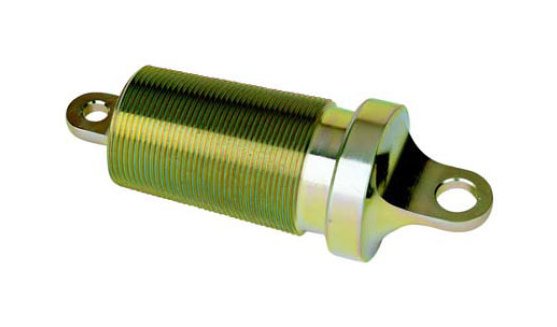

The Heavy-Duty Fixed Head Innerduct Pulling Eyes feature tapered buttress threads for superior strength during cable pulling applications. Specifically designed to connect to Condux swivels, these pulling eyes ensure secure attachment to innerducts, preventing dislodgement even under extreme tension levels. By accurately determining the innerduct inside diameter, these pulling eyes offer a reliable solution that exceeds maximum pulling tensions recommended by innerduct manufacturers.

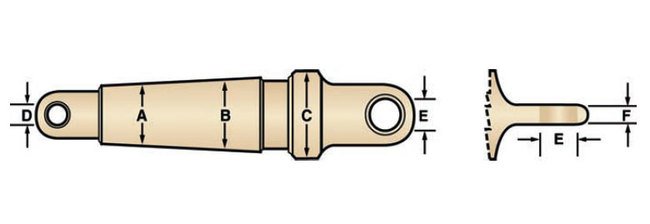

Product Specifications
Specifications Eye Diameter E In
0.63
Specifications Eye Diameter E Mm
16
Specifications Eye Diameter F In
0.25
Specifications Eye Diameter F Mm
6
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.18 to 1.34
Specifications Innerduct Id Range A To B Mm
30 to 34
Specifications Max Od C In
1.50
Specifications Max Od C Mm
38
Specifications Nominal Size In
1-1/4
Specifications Nominal Size Mm
32
