Heavy-Duty Fixed Head Innerduct Pulling Eyes - 1-1/4"
Heavy-Duty Fixed Head Innerduct Pulling Eyes - 1-1/4"
SKU:CON-34852b
Enhance innerduct pulling strength with our Heavy-Duty Fixed Head Pulling Eyes - 1-1/4". Secure, reliable, and easy to install for efficient innerduct operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Fixed Head Innerduct Pulling Eyes - 1-1/4"
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Fixed Head Innerduct Pulling Eyes - 1-1/4"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

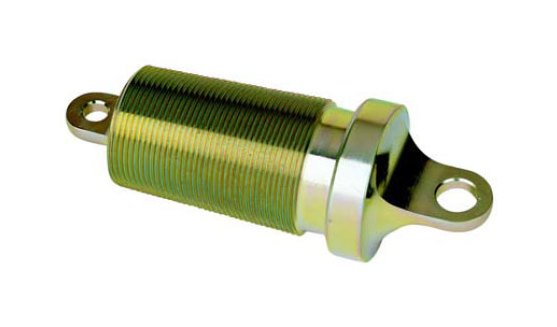

The Heavy-Duty Fixed Head Innerduct Pulling Eyes are designed for maximum pulling strength, featuring tapered buttress threads that securely thread into the innerduct. Connecting directly to a Condux swivel, these pulling eyes are engineered to withstand pulling tensions exceeding innerduct manufacturers' recommendations. To ensure proper sizing, measure the innerduct's inside diameter within the specified ranges. With a precise design and robust construction, these pulling eyes guarantee reliable performance in demanding innerduct pulling applications.

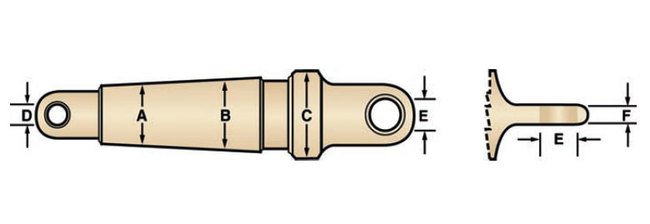

Product Specifications
Specifications Eye Diameter E In
0.63
Specifications Eye Diameter E Mm
16
Specifications Eye Diameter F In
0.25
Specifications Eye Diameter F Mm
6
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.06 to 1.18
Specifications Innerduct Id Range A To B Mm
27 to 30
Specifications Max Od C In
1.50
Specifications Max Od C Mm
38
Specifications Nominal Size In
1-1/4
Specifications Nominal Size Mm
32
