Heavy-Duty Fixed Head Innerduct Pulling Eyes 1-1/4"
Heavy-Duty Fixed Head Innerduct Pulling Eyes 1-1/4"
SKU:PUL-34852b
Heavy-Duty Fixed Head Innerduct Pulling Eyes with tapered buttress threads for maximum pulling strength. Securely connects to a Condux swivel.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy-Duty Fixed Head Innerduct Pulling Eyes 1-1/4"
$24.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Fixed Head Innerduct Pulling Eyes 1-1/4"
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

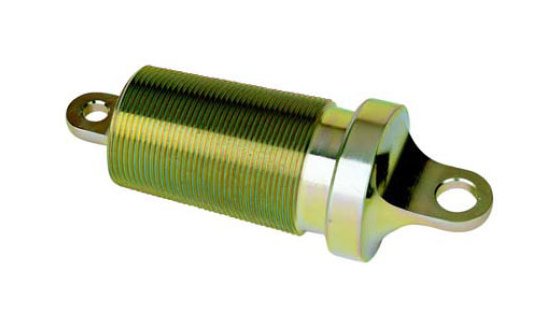

Our Heavy-Duty Fixed Head Innerduct Pulling Eyes are designed with tapered buttress threads for exceptional pulling strength. These pulling eyes securely connect to a Condux swivel, ensuring they stay in place even under extreme tensions. To determine the correct size, measure the innerduct's I.D. between 1.06" to 1.18". With an eye diameter of 0.63" and max O.D. of 1.50", these pulling eyes are robust and reliable for demanding innerduct pulling applications.

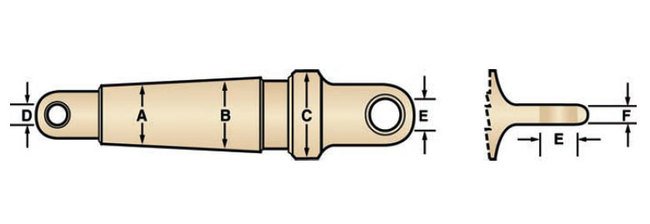

Product Specifications
Specifications Eye Diameter E In
0.63
Specifications Eye Diameter E Mm
16
Specifications Eye Diameter F In
0.25
Specifications Eye Diameter F Mm
6
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.06 to 1.18
Specifications Innerduct Id Range A To B Mm
27 to 30
Specifications Max Od C In
1.50
Specifications Max Od C Mm
38
Specifications Nominal Size In
1-1/4
Specifications Nominal Size Mm
32
