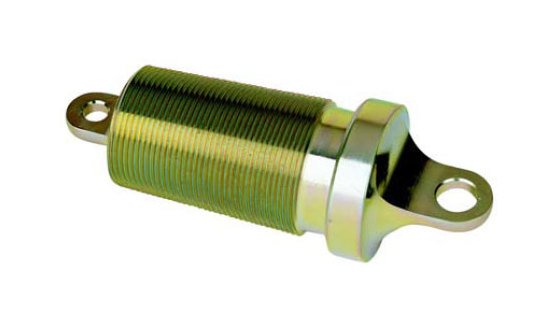

Heavy-Duty Fixed Head Innerduct Pulling Eyes - 2-inch Diameter
Heavy-Duty Fixed Head Innerduct Pulling Eyes - 2-inch Diameter
SKU:CON-54a8cd
Boost pulling strength with our Heavy-Duty Innerduct Pulling Eyes - Secured connections for efficient operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Fixed Head Innerduct Pulling Eyes - 2-inch Diameter
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Fixed Head Innerduct Pulling Eyes - 2-inch Diameter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

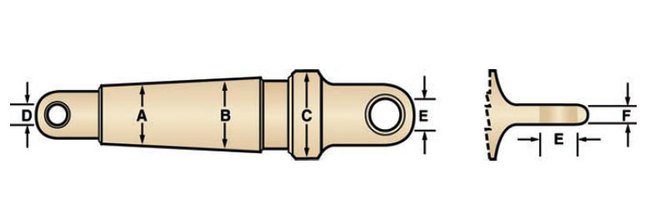

Enhance your innerduct pulling operations with our Heavy-Duty Fixed Head Innerduct Pulling Eyes. Featuring tapered buttress threads for maximum pulling strength and compatibility with Condux swivels, these eyes ensure secure connections. When correctly sized and installed, they maintain a firm grip on innerducts even under intense pulling tensions, surpassing manufacturers' recommendations. Determine the right size by measuring the innerduct I.D. for an optimal fit between dimensions A and B. Enhance your pulling efficiency and safety with these durable pulling eyes.
Product Specifications
Specifications Eye Diameter E In
0.63
Specifications Eye Diameter E Mm
16
Specifications Eye Diameter F In
0.25
Specifications Eye Diameter F Mm
6
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
2.06 to 2.18
Specifications Innerduct Id Range A To B Mm
52 to 56
Specifications Max Od C In
2.50
Specifications Max Od C Mm
64
Specifications Nominal Size In
2
Specifications Nominal Size Mm
51
