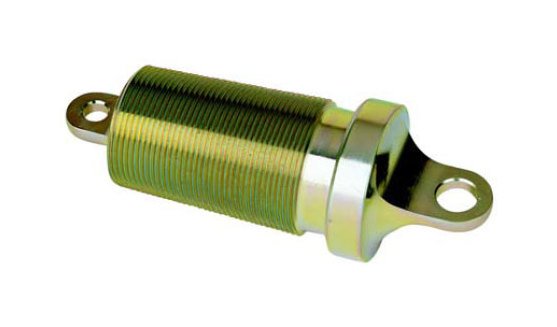

Heavy-Duty Fixed Head Innerduct Pulling Eyes 3/4"
Heavy-Duty Fixed Head Innerduct Pulling Eyes 3/4"
SKU:CON-ec6993
Enhance pulling operations with our Heavy-Duty Fixed Head Innerduct Pulling Eyes for secure and reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Fixed Head Innerduct Pulling Eyes 3/4"
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Fixed Head Innerduct Pulling Eyes 3/4"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your innerduct pulling operations with our Heavy-Duty Fixed Head Innerduct Pulling Eyes. Designed with tapered buttress threads for maximum strength, these eyes securely grip the innerduct, ensuring they withstand high pulling tensions. Connect them effortlessly to a Condux swivel, and rest assured they won't disengage until the limits set by innerduct manufacturers are significantly surpassed. To select the right size, measure the actual innerduct I.D. to ensure a perfect fit within the specified range. Trust in our pulling eyes for dependable and durable performance in demanding applications.

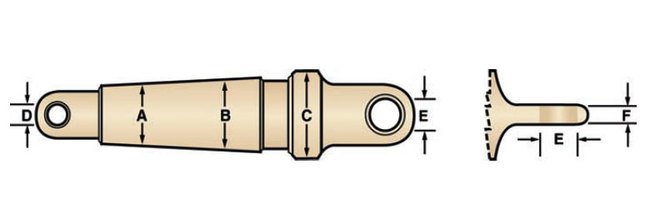

Product Specifications
Specifications Eye Diameter E In
0.50
Specifications Eye Diameter E Mm
13
Specifications Eye Diameter F In
0.25
Specifications Eye Diameter F Mm
6
Specifications Hole Diameter D In
0.25
Specifications Hole Diameter D Mm
6
Specifications Innerduct Id Range A To B In
0.68 to 0.81
Specifications Innerduct Id Range A To B Mm
17 to 21
Specifications Max Od C In
1.13
Specifications Max Od C Mm
29
Specifications Nominal Size In
3/4
Specifications Nominal Size Mm
19
