Heavy-Duty Flange Bracket for Conductor Bar Systems
Heavy-Duty Flange Bracket for Conductor Bar Systems
SKU:CRA-402b55
Heavy-duty flange bracket for secure mounting on beam flanges. Plated steel construction, multiple amperage options, and precise dimensions.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Heavy-Duty Flange Bracket for Conductor Bar Systems
$69.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Flange Bracket for Conductor Bar Systems
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

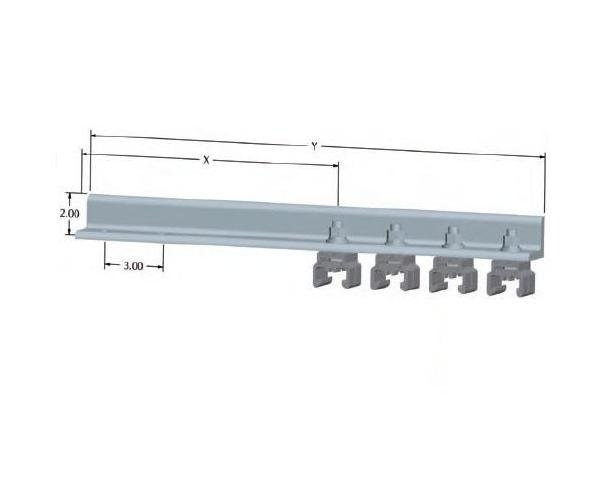

The Heavy-Duty Flange Bracket for Conductor Bar Systems is a robust mounting solution designed to securely attach to the top flange of beams. Constructed from plated steel, this bracket features a 2" x 2" angle with a thickness of 3/8". It offers exceptional durability and can support amperage ratings of 500A, 700A, 1000A, and 1500A. With precise dimensions of 13 1/4" (X) by 23 1/2" (Y) and weighing 8.8 lbs, this bracket is ideal for Hevi-Bar II Conductor Bar systems, ensuring a dependable and sturdy installation.
Product Specifications
Specifications Amperage Rating
500 A | 700 A | 1000 A | 1500 A
Specifications Material
Plated Steel
Specifications Type
Bracket only (no hangers included)
Specifications Weight
8.8 lb
Specifications X
13 1/4 in
Specifications Y
23 1/2 in
